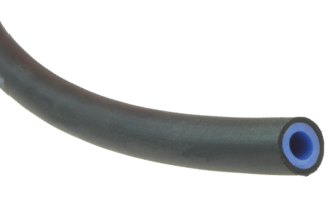

WS0809-50K by Coilhose | Spark-Lin™ Weld Spatter Resistant Tubing | 1/2" OD x .320" ID | 1-7/8" Bend Radius | Black | 50ft

WS0809-50K by Coilhose | Spark-Lin™ Weld Spatter Resistant Tubing | 1/2" OD x .320" ID | 1-7/8" Bend Radius | Black | 50ft

Sale price$218.57
Coilhose Pneumatics - Plastic Tubing - Spark-Lin™ Weld Spatter Resistant Tubing
Buy More, Save More!
Quantity Price Each
5–19 $205.46
20–59 $185.78
60+ $163.93
Discounts applied in cart/checkout.

Product Data:

Color(s):
  • Black
  • Blue
Material(s):
  • Polyurethane
Overview:
  • The Spark-Lin Weld Spatter Resistant Tubing is specially designed for applications with incidental contact between weld spatter and tubing. Coilhose has combined a blue 95A durometer polyurethane core with a specially formulated flame-retardant jacket to create a tubing that sheds weld spatter before it can do any damage. The cover also meets UL 94 VO requirements, offers strong insulating properties, and resists a wide variety of oils, greases, acids, bases, and aqueous solutions. Also resists ozone, heat aging and ultraviolet light.

Model Tube O.D. Tube I.D. Packing Size Jacket Color Bend Radius Working Pressure
at 75° F		 Working Pressure
at 150° F		 Pounds per 100ft
WS2503-100K 5/32" .093" 100ft bag Black 3/8" 210 PSI 88 PSI 0.8 lbs.
WS0404-100K 1/4" .160" 100ft bag Black 1/2" 175 PSI 74 PSI 1.6 lbs.
WS0404-250K 1/4" .160" 250ft bag Black 1/2" 175 PSI 74 PSI 1.6 lbs.
WS0404-1000K 1/4" .160" 1000ft bag Black 1/2" 175 PSI 74 PSI 1.6 lbs.
WS0606-100K 3/8" .245" 100ft bag Black 7/8" 170 PSI 74 PSI 3.6 lbs.
WS0606-500K 3/8" .245" 500ft bag Black 7/8" 170 PSI 74 PSI 3.6 lbs.
WS0809-50K 1/2" .320" 50ft bag Black 1-7/8" 175 PSI 70 PSI 5.2 lbs.

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
