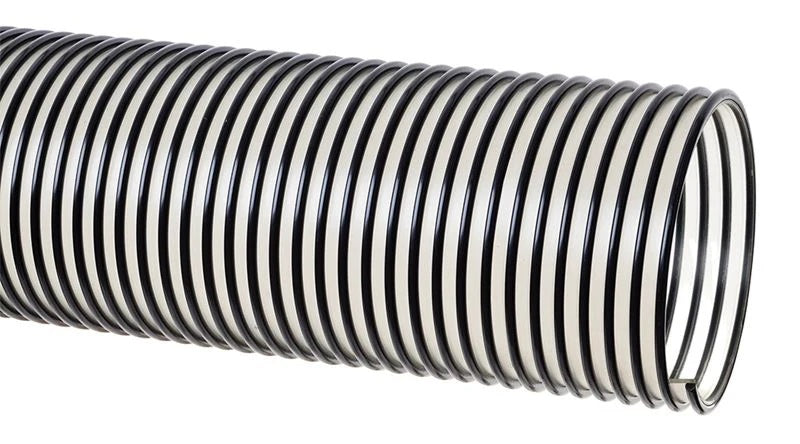

UV2-600X60 Tigerflex® Urevac™ 2 by Kuriyama | UV2™ Series | Medium-Duty Ducting/Material Handling Hose | PVC & Polyurethane (TPU) | 6" ID | 6.62" OD | 60ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Medium-Duty Material Handling Hose
Kuriyama Tigerflex™ UV2 Series
Polyurethane-lined hose designed for agricultural dry fertilizer, air seeder lines, dust control and medium-duty material-handling applications.
PU Liner
Abrasion-resistant ester polyurethane construction
Charge Reducing
Cover helps reduce static electricity buildup
Cold-Flex
Remains flexible in subzero temperatures
Oil Resistant
Resists most animal- and petroleum-based oils
1
What is this product used for?
- Agricultural dry fertilizer
- Air seeder lines
- Dust control
- Medium-duty material handling
- Wand hose
2
What are the key specifications?
Tube
Ester polyurethane (TPU) liner
Reinforcement
Rigid PVC helix
Cover
PVC
Temperature Range
-40°F (-40°C) to +150°F (+65°C)
Compliance
Phthalate free and RoHS
Country of Origin
Made in the USA
3
What are the main product features?
- Extra-Thick Abrasion-Resistant Polyurethane Liner — Designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs compared with rubber or PVC hoses.
- Charge-Reducing Cover — Specially formulated to help prevent static electricity buildup and support smooth material flow.
- Cold-Flex Materials — Hose remains flexible in subzero temperatures.
- Convoluted Outer Cover — The rigid helix helps protect the hose tube from cover wear and allows the hose to slide more easily over rough surfaces.
- Oil-Resistant Polyurethane Liner — Resists most animal- and petroleum-based oils.
- Made in the USA — Manufactured in the United States.
4
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| UV2-150X60 | 1-1/2" | 38.1 | 1.87" | 47.5 | 25 PSI | 10 PSI | 22 in Hg | 16 in Hg | 1-1/2" | 60 | 0.29 |
| UV2-200X60 | 2" | 50.8 | 2.47" | 62.7 | 25 PSI | 10 PSI | 21 in Hg | 14 in Hg | 2-1/2" | 60 | 0.40 |
| UV2-250X60 | 2-1/2" | 63.5 | 2.96" | 75.2 | 20 PSI | 8 PSI | 19 in Hg | 12 in Hg | 3" | 60 | 0.53 |
| UV2-300X60 | 3" | 76.2 | 3.54" | 89.8 | 20 PSI | 8 PSI | 18 in Hg | 11 in Hg | 4" | 60 | 0.67 |
| UV2-400X60 | 4" | 101.6 | 4.57" | 116.1 | 15 PSI | 7 PSI | 13 in Hg | 9 in Hg | 6" | 60 | 1.02 |
| UV2-500X60 | 5" | 127.0 | 5.58" | 141.7 | 15 PSI | 7 PSI | 10 in Hg | 7 in Hg | 8" | 60 | 1.22 |
| UV2-600X60 | 6" | 152.4 | 6.62" | 168.1 | 10 PSI | 5 PSI | 7 in Hg | 5 in Hg | 10" | 60 | 1.68 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
The actual service temperature range and product service life may vary depending on the application, operating conditions and material being conveyed.
How is this product sold?
Available in 60-foot lengths.
⚠ CAUTION: Do not use this hose in combustible situations unless the end user has determined that the application is not sufficient to result in propagating brush discharge.
