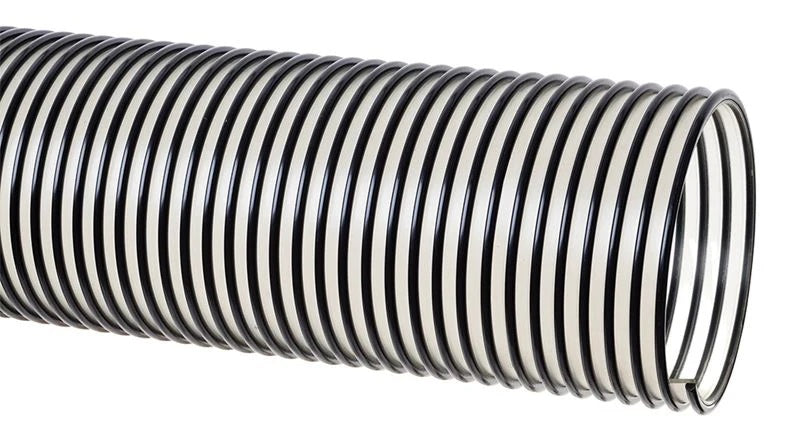

UV2-150X60 Tigerflex® Urevac™ 2 by Kuriyama | UV2™ Series | Medium-Duty Ducting/Material Handling Hose | PVC & Polyurethane (TPU) | 1-1/2" ID | 1.87" OD | 60ft Length
Tigerflex® | Urevac™ 2 UV2™ Series | Medium-Duty Ducting/Material Handling Hose | PVC & Polyurethane (TPU)
Engineered for agricultural and industrial use.
Ideal for dry fertilizer, air seeder lines, dust control, and medium-duty material handling, including wand hose applications.
Made in the USA.
Package Quantity: 60 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $432.65 |
| 15–29 | $391.23 |
| 30+ | $345.20 |
Product Data:
25
Kuriyama Tigerflex™ UV2 Series
Polyurethane-lined hose designed for agricultural dry fertilizer, air seeder lines, dust control and medium-duty material-handling applications.
PU Liner
Abrasion-resistant ester polyurethane construction
Charge Reducing
Cover helps reduce static electricity buildup
Cold-Flex
Remains flexible in subzero temperatures
Oil Resistant
Resists most animal- and petroleum-based oils
1
What is this product used for?
- Agricultural dry fertilizer
- Air seeder lines
- Dust control
- Medium-duty material handling
- Wand hose
2
What are the key specifications?
Ester polyurethane (TPU) liner
Rigid PVC helix
PVC
-40°F (-40°C) to +150°F (+65°C)
Phthalate free and RoHS
Made in the USA
3
What are the main product features?
- Extra-Thick Abrasion-Resistant Polyurethane Liner — Designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs compared with rubber or PVC hoses.
- Charge-Reducing Cover — Specially formulated to help prevent static electricity buildup and support smooth material flow.
- Cold-Flex Materials — Hose remains flexible in subzero temperatures.
- Convoluted Outer Cover — The rigid helix helps protect the hose tube from cover wear and allows the hose to slide more easily over rough surfaces.
- Oil-Resistant Polyurethane Liner — Resists most animal- and petroleum-based oils.
- Made in the USA — Manufactured in the United States.
4
Which sizes are available?
| Part Number | Inside Diameter | Outside Diameter | Working Pressure | Vacuum Rating | Minimum Bending Radius | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | at 68°F | at 104°F | at 68°F | at 104°F | at 68°F | ft | lbs/ft | |
| UV2-150X60 | 1-1/2" | 38.1 | 1.87" | 47.5 | 25 PSI | 10 PSI | 22 in Hg | 16 in Hg | 1-1/2" | 60 | 0.29 |
| UV2-200X60 | 2" | 50.8 | 2.47" | 62.7 | 25 PSI | 10 PSI | 21 in Hg | 14 in Hg | 2-1/2" | 60 | 0.40 |
| UV2-250X60 | 2-1/2" | 63.5 | 2.96" | 75.2 | 20 PSI | 8 PSI | 19 in Hg | 12 in Hg | 3" | 60 | 0.53 |
| UV2-300X60 | 3" | 76.2 | 3.54" | 89.8 | 20 PSI | 8 PSI | 18 in Hg | 11 in Hg | 4" | 60 | 0.67 |
| UV2-400X60 | 4" | 101.6 | 4.57" | 116.1 | 15 PSI | 7 PSI | 13 in Hg | 9 in Hg | 6" | 60 | 1.02 |
| UV2-500X60 | 5" | 127.0 | 5.58" | 141.7 | 15 PSI | 7 PSI | 10 in Hg | 7 in Hg | 8" | 60 | 1.22 |
| UV2-600X60 | 6" | 152.4 | 6.62" | 168.1 | 10 PSI | 5 PSI | 7 in Hg | 5 in Hg | 10" | 60 | 1.68 |
5
Where can I find product documents?
Kuriyama Tigerflex Hose Specifications Guide
Review the manufacturer specifications guide for additional compliance, construction and application information.
How is this product sold?
Available in 60-foot lengths.
