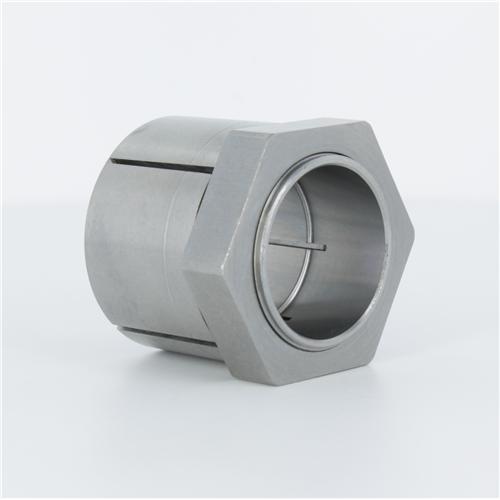

TTQM3045 by Fenner Drives | Trantorque OE | 30mm | Steel

TTQM3045 by Fenner Drives | Trantorque OE | 30mm | Steel

Sale price$148.68
Fenner Drives - Power Transmission - Keyless Locking Devices - Trantorque® OE - Steel - Metric
Buy More, Save More!
Quantity Price Each
20–29 $139.76
30–59 $126.38
60+ $111.51
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Trantorque
Series:
  • OE Series
Overview:
  • N/A
Description:
  • N/A

SPECIFICATIONS

Series: Trantorque OE Torque Transmission: N/A
Axial Movement: N/A Compliancy: N/A
Component Bore Diameter: N/A Hub Pressure: N/A
Installation Torque: N/A Internal/ External: N/A
Material: Steel Metric/Inch: Metric
Releasing/ Locking: N/A Self-Centering: N/A
Shaft Diameter: N/A Taper: N/A
Thrust: N/A

Part Number d D L L1 Wrench Size B Ma* Mt *
Max.
Transmitted		 Th
Max.
Transmitted		 Ph
Steel (mm) (mm) (mm) (mm) A
(mm)		 (mm) Install
Torque
(Nm)		 Torque
(Nm)		 Thrust
(kN)		 Hub
Pressure
(psi)
TTQM1732 17mm 32mm 22mm 29mm 30mm 6mm 110 211 25 137
TTQM1832 18mm 32mm 22mm 29mm 30mm 6mm 110 223 25 137
TTQM1932 19mm 32mm 22mm 29mm 30mm 6mm 110 236 25 137
TTQM2035 20mm 35mm 24mm 32mm 32mm 7mm 150 303 30 138
TTTQM2235 22mm 35mm 24mm 32mm 32mm 7mm 150 333 30 138
TTQM2438 24mm 38mm 25mm 34mm 36mm 7mm 185 405 34 129
TTQM2538 25mm 38mm 25mm 34mm 36mm 7mm 185 422 34 129
TTQM2845 28mm 45mm 29mm 41mm 46mm 11mm 240 515 37 101
TTQM3045 30mm 45mm 29mm 41mm 46mm 11mm 551 515 37 101
TTQM3250 32mm 50mm 30mm 43mm 50mm 11mm 265 601 38 87
TTQM3550 35mm 50mm 30mm 43mm 50mm 11mm 265 658 38 87

NOTE: The data in the Mt Th and Ph is for a steel unit. To obtain data for other materials, use the multiplier provided below.

Multipliers:
Steel - 1.0
Electroless Nickel Plated Steel - 0.6
Thin Dense Chrome Coated Steel - 0.9
Stainless Steel - 0.3
* When installing Trantorque OE with an open-ended wrench, a reduction in installation torque by 50% is recommended. This will result in a Transmitted Torque (Mt) reduced by 50%.
