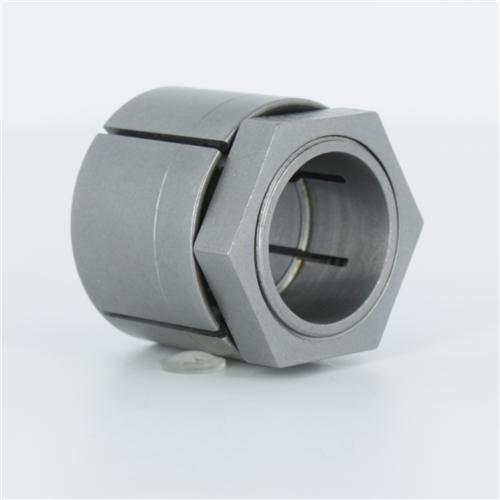

TTQM2035 by Fenner Drives | Trantorque OE | 20mm | Steel

Overview:
The Trantorque OE Series 20mm Keyless Bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 20mm in diameter by means of a mounted mechanical interference fit and transmits up to 298 Nm of torque.
Description:
Trantorque OE Series 20mm Keyless Bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending, and/or radial loads. While maintaining a minimal OD/ID ratio, The Trantorque OE Series Keyless Bushings also have exceptional concentricity and the ability to accommodate bending loads. They also have limited axial movement during installation. All Trantorque units use a single hex nut for speed and simplicity of installation. Best Suited For: Small shaft applications where speed and simplicity of installation and repositioning are critical. Exceptional concentricity and ability to accommodate bending loads Limited axial movement during installation All Trantorque units use a single hex nut for speed and simplicity of installation Features of Fenner Drives Keyless Bushings: Ability to transmit higher torques than keyed connections True zero-backlash Less equipment downtime Ability to mount over existing keyways Complete axial and radial adjustability Simple installation, adjustment and removal All Fenner Drives keyless locking devices operate using the simple wedge principle. An axial force is applied- by either a hex nut (Trantorque) or a series of annular screws (B-LOC)- to engage circular steel rings with mating tapers. The resulting wedge action creates a radial force on the tapered rings, one of which contracts to squeeze the shaft while the other expands and presses into the component bore.

SPECIFICATIONS

Series:	Trantorque OE	Torque Transmission:	303 Nm
Axial Movement:	Approximately 1.9mm	Compliancy:	RoHS
Component Bore Diameter:	35mm	Hub Pressure:	138 N/mm2
Installation Torque:	150 Nm	Internal/ External:	Internal
Material:	Steel	Metric/Inch:	Metric
Releasing/ Locking:	Locking	Self-Centering:	Yes
Shaft Diameter:	20mm	Taper:	Single
Thrust:	30 kN

Part Number	d	D	L	L1	Wrench Size	B	Ma*	Mt * Max. Transmitted	Th Max. Transmitted	Ph
Steel	(mm)	(mm)	(mm)	(mm)	A (mm)	(mm)	Install Torque (Nm)	Torque (Nm)	Thrust (kN)	Hub Pressure (psi)
TTQM1732	17mm	32mm	22mm	29mm	30mm	6mm	110	211	25	137
TTQM1832	18mm	32mm	22mm	29mm	30mm	6mm	110	223	25	137
TTQM1932	19mm	32mm	22mm	29mm	30mm	6mm	110	236	25	137
TTQM2035	20mm	35mm	24mm	32mm	32mm	7mm	150	303	30	138
TTTQM2235	22mm	35mm	24mm	32mm	32mm	7mm	150	333	30	138
TTQM2438	24mm	38mm	25mm	34mm	36mm	7mm	185	405	34	129
TTQM2538	25mm	38mm	25mm	34mm	36mm	7mm	185	422	34	129
TTQM2845	28mm	45mm	29mm	41mm	46mm	11mm	240	515	37	101
TTQM3045	30mm	45mm	29mm	41mm	46mm	11mm	551	515	37	101
TTQM3250	32mm	50mm	30mm	43mm	50mm	11mm	265	601	38	87
TTQM3550	35mm	50mm	30mm	43mm	50mm	11mm	265	658	38	87

NOTE: The data in the M_t Th and P_h is for a steel unit. To obtain data for other materials, use the multiplier provided below.

Multipliers:
Steel - 1.0
Electroless Nickel Plated Steel - 0.6
Thin Dense Chrome Coated Steel - 0.9
Stainless Steel - 0.3
* When installing Trantorque OE with an open-ended wrench, a reduction in installation torque by 50% is recommended. This will result in a Transmitted Torque (Mt) reduced by 50%.
