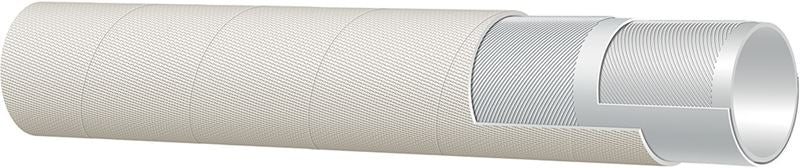

T957LL125X100 Alfagomma by Kuriyama | T957LL Series | Furnace Door Coolant Hose | 1-1/4" ID | 1.81" OD | 300 PSI | Beige | 100ft Length
Kuriyama of America Inc.
Alfagomma | T146AK Series | Braided MSHA Mine Spray Hose
Used to convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,336.75 |
| 8–14 | $1,279.86 |
| 15+ | $1,137.66 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | To convey cooling water to furnace doors in steel mills, glass plants, foundries, or where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass. | ||
|---|---|---|---|
| Other Ratings: | - | Tube: | White EPDM. |
| Reinforcement: | High tensile textile cords. | Cover: | Beige EPDM - heat resistant, nonconductive resin-coated dust-free fiberglass cover. |
| Service Temperature Range: | Tube: -40°F (-40°C) to +248°F (+120°C) Cover: -40°F (-40°C) to +1000°F (up to +540°C) |
Coupling Suggestions: | - |
| Branding: | - | ||
| Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | |
| T957LL050X100 | 1/2" | 13mm | 0.98" | 25mm | 300 PSI | 0.30 lbs/ft |
| T957LL075X100 | 3/4" | 19mm | 1.22" | 31mm | 300 PSI | 0.46 lbs/ft |
| T957LL100X100 | 1" | 25mm | 1.46" | 37mm | 300 PSI | 0.56 lbs/ft |
| T957LL125X100 | 1-1/4" | 32mm | 1.81" | 46mm | 300 PSI | 0.82 lbs/ft |
| T957LL150X100 | 1-1/2" | 38mm | 2.13" | 54mm | 300 PSI | 0.98 lbs/ft |
| T957LL200X100 | 2" | 51mm | 2.64" | 67mm | 300 PSI | 1.26 lbs/ft |
| T957LL250X100 | 2-1/2" | 63mm | 3.19" | 81mm | 300 PSI | 1.55 lbs/ft |
| T957LL300X100 | 3" | 76mm | 3.78" | 96mm | 300 PSI | 2.15 lbs/ft |
