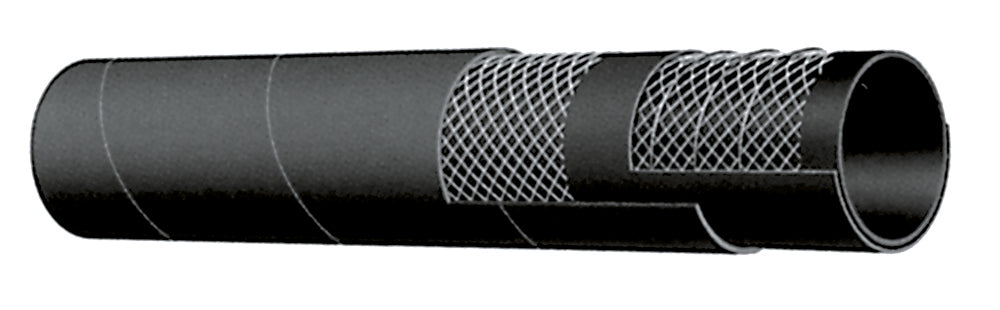

T223AA800X40 Alfagomma by Kuriyama | T223AA Series | Heavy Duty Suction & Discharge Water Hose | 8" ID | 8.86" OD | 300 PSI | Black | 40ft Length
Package Quantity: 40 Foot
Buy more, save moreDiscounts applied in cart/checkout.
SPECIFICATIONS
| Applications: | Heavy duty water suction and discharge applications for irrigation, agriculture, mining and construction. Designed for long service life in heavy duty applications for water suction and delivery service. |
||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive EPDM. |
| Reinforcement: | Spiraled high tensile textile cords with flexible steel helix wire. | Cover: | Black conductive EPDM - abrasion and ozone resistant. |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA-ITALY-223 20 BAR (300 PSI) WATER S & D (in green letters) | ||
| Part Number 40ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | (lbs/ft) | ||
| - | T223AA200X100 | 2" | 51mm | 2.48" | 63mm | 300 PSI | 30 in Hg | 8" | 0.955 lbs/ft |
| - | T223AA250X100 | 2-1/2" | 63mm | 3.03" | 77mm | 300 PSI | 27 in Hg | 10" | 1.395 lbs/ft |
| - | T223AA300X100 | 3" | 76mm | 3.54" | 90mm | 300 PSI | 27 in Hg | 12" | 1.715 lbs/ft |
| - | T223AA400X100 | 4" | 102mm | 4.57" | 116mm | 300 PSI | 27 in Hg | 16" | 2.350 lbs/ft |
| - | T223AA600X100 | 6" | 152mm | 6.61" | 168mm | 300 PSI | 24 in Hg | 24" | 4.580 lbs/ft |
| T223AA800X40 | - | 8" | 203mm | 8.86" | 225mm | 300 PSI | 21 in Hg | 32" | 7.335 lbs/ft |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
Special Properties:
