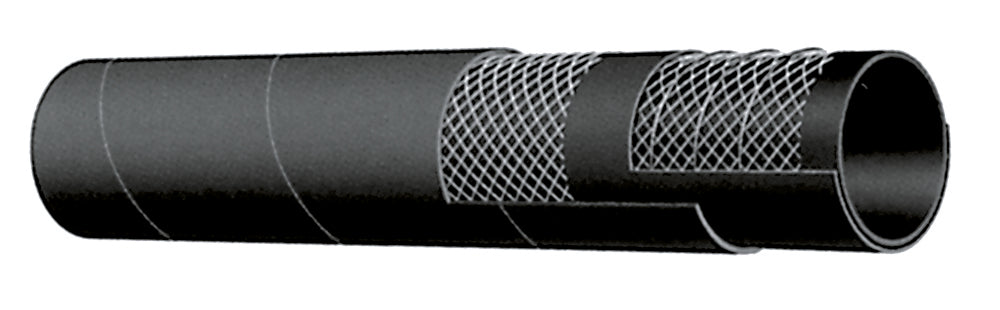

T223AA400X100 Alfagomma by Kuriyama | T223AA Series | Heavy Duty Suction & Discharge Water Hose | 4" ID | 4.57" OD | 300 PSI | Black | 100ft Length
Kuriyama of America Inc.
Alfagomma | T223AA Series | Heavy Duty Suction & Discharge Water Hose
Ideal for heavy duty water suction and discharge applications for irrigation, agriculture, mining and construction.
Designed for long service life in heavy duty applications for water suction and delivery service.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $2,050.82 |
| 8–14 | $1,963.55 |
| 15+ | $1,745.38 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
Special Properties:
SPECIFICATIONS
| Applications: | Heavy duty water suction and discharge applications for irrigation, agriculture, mining and construction. Designed for long service life in heavy duty applications for water suction and delivery service. |
||
|---|---|---|---|
| Other Ratings: | - | Tube: | Black conductive EPDM. |
| Reinforcement: | Spiraled high tensile textile cords with flexible steel helix wire. | Cover: | Black conductive EPDM - abrasion and ozone resistant. |
| Service Temperature Range: | -40°F (-40°C) to +212°F (+100°C) | Coupling Suggestions: | Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps. |
| Branding: | ALFAGOMMA-ITALY-223 20 BAR (300 PSI) WATER S & D (in green letters) | ||
| Part Number 40ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Vacuum | Min. Bend Radius at 68°F |
Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | in Hg | (in) | (lbs/ft) | ||
| - | T223AA200X100 | 2" | 51mm | 2.48" | 63mm | 300 PSI | 30 in Hg | 8" | 0.955 lbs/ft |
| - | T223AA250X100 | 2-1/2" | 63mm | 3.03" | 77mm | 300 PSI | 27 in Hg | 10" | 1.395 lbs/ft |
| - | T223AA300X100 | 3" | 76mm | 3.54" | 90mm | 300 PSI | 27 in Hg | 12" | 1.715 lbs/ft |
| - | T223AA400X100 | 4" | 102mm | 4.57" | 116mm | 300 PSI | 27 in Hg | 16" | 2.350 lbs/ft |
| - | T223AA600X100 | 6" | 152mm | 6.61" | 168mm | 300 PSI | 24 in Hg | 24" | 4.580 lbs/ft |
| T223AA800X40 | - | 8" | 203mm | 8.86" | 225mm | 300 PSI | 21 in Hg | 32" | 7.335 lbs/ft |
