T155AK125X100 Alfagomma by Kuriyama | T155AK Series | Compressed "Air Drill" Hose | 1-1/4" ID | 1.73" OD | 300 PSI | Yellow | 100ft Length
Kuriyama of America Inc.
Alfagomma | T155AK Series | 300 PSI Air Drill Hose
High quality air hose for mining and construction service.
Package Quantity: 100 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $569.47 |
| 15–29 | $514.95 |
| 30+ | $454.37 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Mining and construction service | SAE Rating: | - |
|---|---|---|---|
| Other Ratings: | - | Tube: | Black SBR/NBR blend - oil mist resistant. |

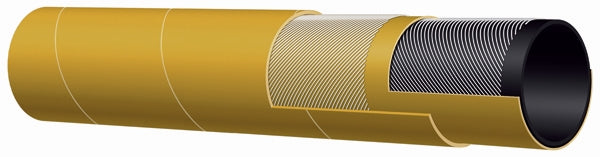

| Reinforcement: | Spiraled, high tensile textile cords. | Cover: | Yellow SBR - abrasion and ozoneresistant. |
| Service Temperature Range: | -22°F (-30°C) to +176°F (+80°C) | Coupling Suggestions: | Steel or malleable iron male insert NPT, female ground joint or washer type with spud, attached with 2 or 4 bolt interlocking clamps or bands. Universal couplings may be used on sizes (1/2" - 2"). |
| Branding: | ALFAGOMMA - ITALY - T155 20 BAR (300 PSI) AIR (in blue letters) | ||
| Part Number 50ft |
Part Number 100ft |
Part Number Bulk |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | PSI | lbs/ft | |||
| T155AK050X50 | T155AK050X100 | T155AK050 | 1/2" | 13mm | 0.83" | 21mm | 300 PSI | 0.22 lbs/ft |
| - | T155AK075X100 | - | 3/4" | 19mm | 1.14" | 29mm | 300 PSI | 0.38 lbs/ft |
| T155AK100X50 | T155AK100X100 | - | 1" | 25mm | 1.38" | 35mm | 300 PSI | 0.48 lbs/ft |
| - | T155AK125X100 | - | 1-1/4" | 32mm | 1.73" | 44mm | 300 PSI | 0.60 lbs/ft |
| - | T155AK150X100 | - | 1-1/2" | 38mm | 1.97" | 50mm | 300 PSI | 0.70 lbs/ft |
| T155AK200X50 | T155AK200X100 | - | 2" | 51mm | 2.56" | 65mm | 300 PSI | 1.12 lbs/ft |
| T155AK250X50 | T155AK250X100 | - | 2-1/2" | 63mm | 3.11" | 79mm | 300 PSI | 1.55 lbs/ft |
| T155AK300X50 | T155AK300X100 | - | 3" | 76mm | 3.62" | 92mm | 300 PSI | 1.89 lbs/ft |
| T155AK400X50 | T155AK400X100 | - | 4" | 102mm | 4.65" | 118mm | 300 PSI | 2.47 lbs/ft |
