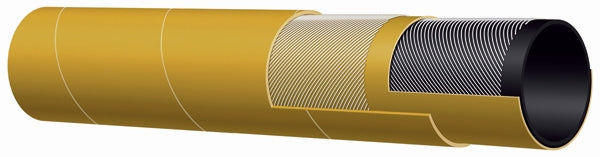

T155AK050X50 Alfagomma by Kuriyama | T155AK Series | Compressed "Air Drill" Hose | 1/2" ID | 0.83" OD | 300 PSI | Yellow | 50ft Length
Kuriyama of America Inc.
Alfagomma | T155AK Series | 300 PSI Air Drill Hose
High quality air hose for mining and construction service.
Package Quantity: 50 Foot
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $174.13 |
| 20–59 | $157.45 |
| 60+ | $138.93 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
Air Hose
T155® Mining & Construction Air Hose
A rugged spiraled-textile air hose built for mining and construction service, rated to 300 PSI with an abrasion- and ozone-resistant cover.
300 PSI Rated
20 BAR maximum working pressure
Oil Mist Resistant Tube
Black SBR/NBR blend
Abrasion & Ozone Resistant Cover
Yellow SBR construction
High-Tensile Reinforcement
Spiraled textile cords
1
What is this product used for?
- Mining service
- Construction service
2
What are the key specifications?
Application
Mining and construction service
Service Temperature Range
-22°F (-30°C) to +176°F (+80°C)
Tube
Black SBR/NBR blend — oil mist resistant.
Reinforcement
Spiraled, high tensile textile cords.
Cover
Yellow SBR — abrasion and ozone resistant.
Branding
ALFAGOMMA - ITALY - T155 20 BAR (300 PSI) AIR (in blue letters)
Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, attached with 2 or 4 bolt interlocking clamps or bands. Universal couplings may be used on sizes (1/2" - 2").
3
Which options or configurations are available?
| Part Number 50ft |
Part Number 100ft |
ID | OD | Max Rec. Working Pressure |
Weight | ||
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | ||||
| T155AK050X50 | T155AK050X100 | 1/2" | 13mm | 0.83" | 21mm | 300 PSI | 0.22 lbs/ft |
| — | T155AK075X100 | 3/4" | 19mm | 1.14" | 29mm | 300 PSI | 0.38 lbs/ft |
| T155AK100X50 | T155AK100X100 | 1" | 25mm | 1.38" | 35mm | 300 PSI | 0.48 lbs/ft |
| — | T155AK125X100 | 1-1/4" | 32mm | 1.73" | 44mm | 300 PSI | 0.60 lbs/ft |
| — | T155AK150X100 | 1-1/2" | 38mm | 1.97" | 50mm | 300 PSI | 0.70 lbs/ft |
| T155AK200X50 | T155AK200X100 | 2" | 51mm | 2.56" | 65mm | 300 PSI | 1.12 lbs/ft |
| T155AK250X50 | T155AK250X100 | 2-1/2" | 63mm | 3.11" | 79mm | 300 PSI | 1.55 lbs/ft |
| T155AK300X50 | T155AK300X100 | 3" | 76mm | 3.62" | 92mm | 300 PSI | 1.89 lbs/ft |
| T155AK400X50 | T155AK400X100 | 4" | 102mm | 4.65" | 118mm | 300 PSI | 2.47 lbs/ft |
