T01-5X6 by Couplamatic | T Series Coupling | 5/16" Hose ID x 3/8-18 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 10
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
T Series — PTFE / Reduced OD 100R7

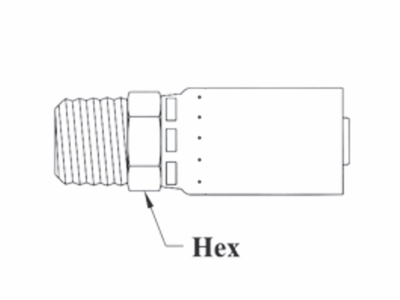

T01 T Series — NPTF Male Solid, Straight
T01 is the NPTF Male Solid, Straight configuration of the T Series, terminating SAE 100R14 PTFE hose, 1/4"–3/8" reduced OD 100R7 hose, and standard 1/2"–1" 100R7 hose.
1
What are the main product features?
- The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
- Trivalent Zinc Plating
- Covers PTFE and reduced OD hose — the configurations the 3 Series does not fit.
- Minimum order quantities apply — 10 pieces for 3/16"–1/2", 5 pieces for 3/4" and 1".
2
Which sizes are available?
| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Cross Reference Part Numbers |
|---|---|---|---|---|---|
| Weatherhead E | |||||
| T01-3X2 | 3/16" | 1/8" | 1/8-27 | 1/2" | 03E-102 |
| T01-3X4 | 3/16" | 1/4" | 1/4-18 | 9/16" | — |
| T01-4X2 | 1/4" | 1/8" | 1/8-27 | 1/2" | 04E-102 |
| T01-4X4 | 1/4" | 1/4" | 1/4-18 | 9/16" | 04E-104 |
| T01-4X6 | 1/4" | 3/8" | 3/8-18 | 11/16" | 04E-106 |
| T01-5X4 | 5/16" | 1/4" | 1/4-18 | 9/16" | 05E-104 |
| T01-5X6 | 5/16" | 3/8" | 3/8-18 | 11/16" | 05E-106 |
| T01-6X4 | 3/8" | 1/4" | 1/4-18 | 9/16" | 06E-104 |
| T01-6X6 | 3/8" | 3/8" | 3/8-18 | 11/16" | 06E-106 |
| T01-6X8 | 3/8" | 1/2" | 1/2-14 | 7/8" | 06E-108 |
| T01-8X6 | 1/2" | 3/8" | 3/8-18 | 3/4" | 08E-106 |
| T01-8X8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 08E-108 |
| T01-12X12 | 3/4" | 3/4" | 3/4-14 | 1-1/16" | 12E-112 |
| T01-16X16 | 1" | 1" | 1-11-1/2 | 1-3/8" | 16E-116 |
Additional Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
