T01-16X16 by Couplamatic | T Series Coupling | 1" Hose ID x 1-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 5
Couplamatic Systems Inc.
T Series - NPTF - Male Solid
Package Quantity: 5 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $66.70 |
| 40–79 | $60.32 |
| 80+ | $53.22 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

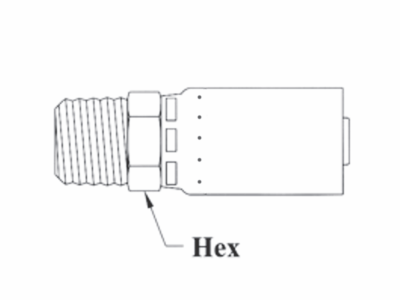

| Part Number | Hose ID | Pipe Size | Thread Size | Hex Size | Cross Reference Part Numbers |
|---|---|---|---|---|---|
| Weatherhead E | |||||
| T01-3X2 | 3/16" | 1/8" | 1/8-27 | 1/2" | 03E-102 |
| T01-3X4 | 3/16" | 1/4" | 1/4-18 | 9/16" | - |
| T01-4X2 | 1/4" | 1/8" | 1/8-27 | 1/2" | 04E-102 |
| T01-4X4 | 1/4" | 1/4" | 1/4-18 | 9/16" | 04E-104 |
| T01-4X6 | 1/4" | 3/8" | 3/8-18 | 11/16" | 04E-106 |
| T01-5X4 | 5/16" | 1/4" | 1/4-18 | 9/16" | 05E-104 |
| T01-5X6 | 5/16" | 3/8" | 3/8-18 | 11/16" | 05E-106 |
| T01-6X4 | 3/8" | 1/4" | 1/4-18 | 9/16" | 06E-104 |
| T01-6X6 | 3/8" | 3/8" | 3/8-18 | 11/16" | 06E-106 |
| T01-6X8 | 3/8" | 1/2" | 1/2-14 | 7/8" | 06E-108 |
| T01-8X6 | 1/2" | 3/8" | 3/8-18 | 3/4" | 08E-106 |
| T01-8X8 | 1/2" | 1/2" | 1/2-14 | 7/8" | 08E-108 |
| T01-12X12 | 3/4" | 3/4" | 3/4-14 | 1-1/16" | 12E-112 |
| T01-16X16 | 1" | 1" | 1-11-1/2 | 1-3/8" | 16E-116 |
