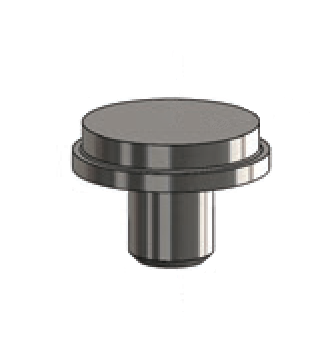

SPR-TOPCAP Dixon Valve 1-1/2" & 2" Sanitary Pressure Relief Valve Replacement Part - Top Cap - 304 Stainless Steel
Dixon

SPR-TOPCAP Dixon Valve 1-1/2" & 2" Sanitary Pressure Relief Valve Replacement Part - Top Cap - 304 Stainless Steel

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Valve opens when the set pressure is reached to prevent excess pressure in piping or systems.
  • Valve body made from solid bar.
  • Patented squeeze clamp.
  • Low spare part cost.
  • Clamp End connection.
  • Actuation: Manual.
  • Maximum Operating Temperature [Sterilization]: 300°F (148°C) (Maximum 20 min)
Materials:
  • Wetted Product Surfaces: 32Ra
  • Product Contact: 316L Stainless Steel
  • Non product contact: 304 Stainless Steel
Specifications:
  • 3-A Certified
Part Number Item Number Part Quantity Material
1-1/2" 2"
SPR-LBDY150 SPR-LBDY200 1 L body 1 316L Stainless Steel
SPR-TBDY150 SPR-TBDY200 1A T body 1 316L Stainless Steel
SPR-SSV / SPR-SSE SPR-SSV / SPR-SSE 2 Seat seal 1 FKM / EPDM
SPR-STEM150 SPR-STEM200 3 Stem 1 316L Stainless Steel
SPR-WSHR SPR-WSHR 4 Washer 1 304 Stainless Steel
40IV150 / 40IE150 40IV200 / 40IE200 5 Body gasket 1 FKM / EPDM
SPR-SH150 SPR-SH200 6 Stem holder 1 316L Stainless Steel
SPR-SOV / SPR-SOE SPR-SOV / SPR-SOE 7 Stem O-ring 1 FKM / EPDM
SPR-ADPTR150 SPR-ADPTR200 8 Adapter 1 304 Stainless Steel
SPR-LN SPR-LN 9 Locking nut 1 304 Stainless Steel
SPR-S50 / SPR-S100 / SPR-S300 SPR-S50 / SPR-S100 / SPR-S300 10 Spring
(50 PSI / 100 PSI / 300 PSI)		 1 316L Stainless Steel
SPR-TOPCAP SPR-TOPCAP 11 Top cap 1 304 Stainless Steel
SPR-ADJSTCAP SPR-ADJSTCAP 12 Adjustable cap 1 304 Stainless Steel
13IL-Q100150 13IL-Q200 13 Clamp 1 304 Stainless Steel
