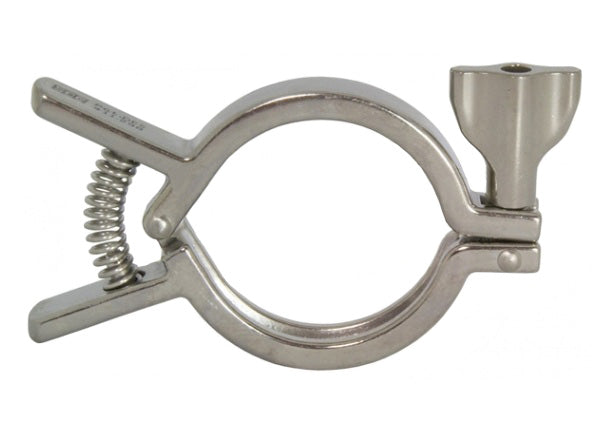

13IL-Q100150 Dixon Valve I-line/Q-line Squeeze Clamp - 1"- 1-1/2" - 304 Stainless Steel
Dixon

13IL-Q100150 Dixon Valve I-line/Q-line Squeeze Clamp - 1"- 1-1/2" - 304 Stainless Steel

Sale price$46.96

Dixon Sanitary Fittings I-line/Q-line Squeeze Clamp

Product Data:

Material(s):
  • 304 Stainless Steel
Minimum Clamp I.D.:

1"

Maximum Clamp I.D.:

1.5"
Notes:
  • Wing nut tightened to 25 in. lbs. of torque
  • Tests are done hydrostatically with no water hammer or shock loads.
  • All ratings shown are dependent upon related components within the system and proper installation.
Material:
  • 304 Stainless Steel
Part Number Tube OD Pressure Rating
13IL-Q100150 1"- 1-1/2" 700 PSI at 70°F
250 PSI at 250°F
13IL-Q200 2" 450 PSI at 70°F
250 PSI at 250°F

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
