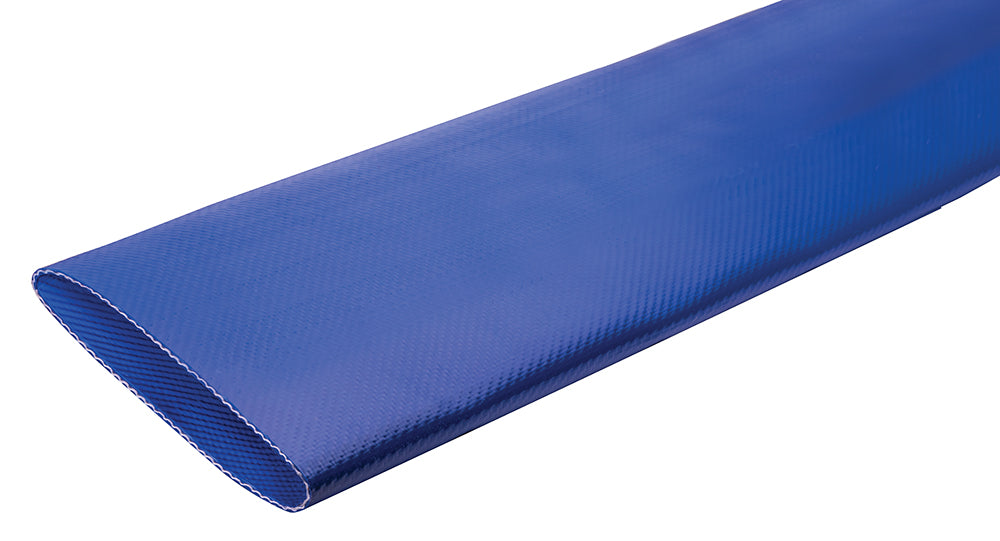

OFAQ-250X660 OROFLEX® AQUA by Kuriyama | OFAQ Series | Potable Water Discharge Layflat Hose | Polyurethane | 2-1/2" Size | 2.618" Hose ID | Blue | 660ft Length

OFAQ-250X660 OROFLEX® AQUA by Kuriyama | OFAQ Series | Potable Water Discharge Layflat Hose | Polyurethane | 2-1/2" Size | 2.618" Hose ID | Blue | 660ft Length

Sale price$4,583.88

Package Quantity: 660 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Drinking water transport
Emergency water supply
Liquid and powder food transfer
Potable water to transfer ships/boats
Sewer and water treatment
Construction: Blue NSF-61 polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -58°F (-50°C) to +122°F (+50°C);
Intermittent service to +175°F (+79°C)
Other Features:
  • Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
  • NSF-61 Certified - Hose is certified under NSF/ANSI 61: Drinking Water System Components.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Longer Lengths - Available in 200 foot lengths and also longer 660 foot lengths to reduce possible leaking points.
  • Smooth TPU Tube - Provides low friction loss.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Made in Europe.
Part Number
200ft		 Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
OFAQ-100X200 OFAQ-100X660 1" 25.4mm 1.004" 25.5mm 0.071" 240 PSI 725 PSI 0.11 lbs
OFAQ-150X200 OFAQ-150X660 1-1/2" 38.1mm 1.559" 39.6mm 0.079" 300 PSI 900 PSI 0.24 lbs
OFAQ-200X200 OFAQ-200X660 2" 50.8mm 2.059" 52.3mm 0.075" 240 PSI 600 PSI 0.26 lbs
OFAQ-250X200 OFAQ-250X660 2-1/2" 63.5mm 2.618" 66.5mm 0.090" 240 PSI 600 PSI 0.35 lbs
OFAQ-300X200 OFAQ-300X660 3" 76.2mm 3.059" 77.7mm 0.093" 240 PSI 600 PSI 0.43 lbs
OFAQ-400X200 OFAQ-400X660 4" 101.6mm 4.059" 103.1mm 0.106" 240 PSI 600 PSI 0.67 lbs
OFAQ-600X200 OFAQ-600X660 6" 152.4mm 6.020" 152.9mm 0.138" 240 PSI 600 PSI 1.18 lbs

Additional Product Data:

Brand:
  • OROFLEX AQUA
Series:
  • OFAQ Series
Color(s):
  • Blue

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
