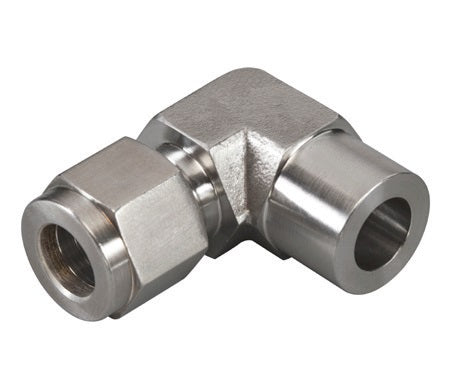

N2526-12-12-SS by Brennan Inc. | -12 Instrumentation Fitting x -12 Socket Weld | 90° Elbow | Stainless Steel

N2526-12-12-SS by Brennan Inc. | -12 Instrumentation Fitting x -12 Socket Weld | 90° Elbow | Stainless Steel

Sale price$271.55

Brennan Inc.
Double Ferrule Tube Fittings: N2526 - Instrumentation Fitting x | Socket Weld 90° Elbow
Buy More, Save More!
Quantity Price Each
5–14 $255.26
15–29 $230.82
30+ $203.66
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Tube Compression
  • 3/4in Weld End
Material(s):
  • Stainless Steel
Part Number Material T Tube OD A BX C D E Min. F A/F G A/F HX HY K
N2526-04-04-SS Stainless Steel 1/4" 27.0mm 7.9mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 19.6mm 12.7mm
N2526-06-06-SS Stainless Steel 3/8" 30.5mm 9.6mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 23.1mm 23.1mm 15.8mm
N2526-08-08-SS Stainless Steel 1/2" 36.0mm 12.7mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 25.9mm 20.6mm
N2526-12-12-SS Stainless Steel 3/4" 39.9mm 14.3mm 21.8mm 24.4mm 15.8mm 27.0mm 28.5mm 29.7mm 29.7mm 27.0mm
N2526-16-16-SS Stainless Steel 1" 49.0mm 19.1mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 36.8mm 36.8mm 35.0mm
