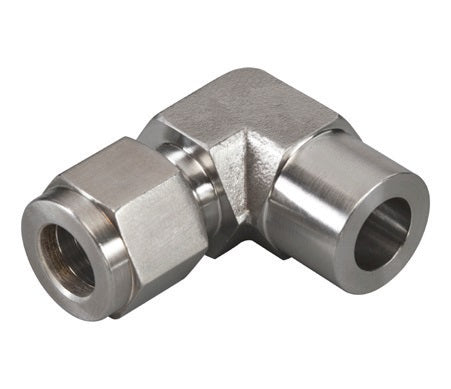

N2526-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Socket Weld | 90° Elbow | Stainless Steel

N2526-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Socket Weld | 90° Elbow | Stainless Steel

Sale price$52.30

Brennan Inc.
Double Ferrule Tube Fittings: N2526 - Instrumentation Fitting x | Socket Weld 90° Elbow
Buy More, Save More!
Quantity Price Each
10–39 $49.16
40–79 $44.46
80+ $39.23
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/4in Tube Compression
  • 1/4in Weld End
Material(s):
  • Stainless Steel
Part Number Material T Tube OD A BX C D E Min. F A/F G A/F HX HY K
N2526-04-04-SS Stainless Steel 1/4" 27.0mm 7.9mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 19.6mm 12.7mm
N2526-06-06-SS Stainless Steel 3/8" 30.5mm 9.6mm 19.3mm 16.8mm 7.1mm 16.0mm 17.0mm 23.1mm 23.1mm 15.8mm
N2526-08-08-SS Stainless Steel 1/2" 36.0mm 12.7mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 25.9mm 20.6mm
N2526-12-12-SS Stainless Steel 3/4" 39.9mm 14.3mm 21.8mm 24.4mm 15.8mm 27.0mm 28.5mm 29.7mm 29.7mm 27.0mm
N2526-16-16-SS Stainless Steel 1" 49.0mm 19.1mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 36.8mm 36.8mm 35.0mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
