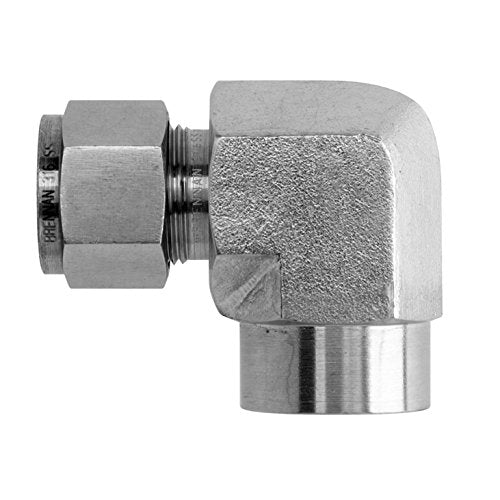

N2502-06-06-SS by Brennan Inc. | -06 Instrumentation Fitting x -06 Female NPT | 90° Elbow | Stainless Steel
Brennan Inc

N2502-06-06-SS by Brennan Inc. | -06 Instrumentation Fitting x -06 Female NPT | 90° Elbow | Stainless Steel

Sale price$74.28

Brennan Inc.
Double Ferrule Tube Fittings: N2502 - Instrumentation Fitting x Female NPT 90° Elbow

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/8in Tube Compression
  • 3/8in Female NPT
Material(s):
  • Stainless Steel
Part Number Material T Tube OD P NPT Female A B C D E Min. F A/F G A/F HX HY
N2502-02-02-B Brass 1/8" 1/8" 24.6mm 10.4mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 18.0mm 19.0mm
N2502-04-02-B Brass 1/4" 1/8" 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 19.0mm
N2502-04-04-B Brass 1/4" 1/4" 29.7mm 15.0mm 17.8mm 15.3mm 4.8mm 19.0mm 14.0mm 22.4mm 22.4mm
N2502-04-06-B Brass 1/4" 3/8" 31.8mm 15.0mm 17.8mm 15.3mm 4.8mm 22.0mm 14.0mm 24.4mm 22.4mm
N2501-06-02-B Brass 3/8" 1/8" 30.5mm 10.4mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 23.2mm 19.1mm
N2502-06-04-B Brass 3/8" 1/4" 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19.0mm 17.0mm 23.9mm 22.4mm
N2502-06-06-B Brass 3/8" 3/8" 33.3mm 15.0mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 25.9mm 22.4mm
N2502-06-08-B Brass 3/8" 1/2" 36.0mm 19.8mm 19.3mm 16.8mm 7.1mm 27.0mm 17.0mm 28.7mm 28.5mm
N2502-08-04-B Brass 1/2" 1/4" 36.0mm 15.0mm 21.8mm 22.9mm 7.1mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-06-B Brass 1/2" 3/8" 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-08-B Brass 1/2" 1/2" 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 28.7mm 28.5mm
N2502-02-02-SS Stainless Steel 1/8" 1/8" 24.6mm 10.4mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 18.0mm 19.0mm
N2502-02-04-SS Stainless Steel 1/8" 1/4" 27.4mm 15.0mm 15.3mm 12.7mm 2.4mm 19.0mm 11.0mm 20.8mm 22.4mm
N2502-03-02-SS Stainless Steel - - - - - - - - - - -
N2502-04-02-SS Stainless Steel 1/4" 1/8" 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 19.0mm
N2502-04-04-SS Stainless Steel 1/4" 1/4" 29.7mm 15.0mm 17.8mm 15.3mm 4.8mm 19.0mm 14.0mm 22.4mm 22.4mm
N2502-04-06-SS Stainless Steel 1/4" 3/8" 31.8mm 15.0mm 17.8mm 15.3mm 4.8mm 22.0mm 14.0mm 24.4mm 22.4mm
N2502-04-08-SS Stainless Steel 1/4" 1/2" 34.6mm 19.8mm 17.8mm 15.3mm 4.8mm 27.0mm 14.0mm 27.2mm 28.5mm
N2502-05-02-SS Stainless Steel 5/16" 1/8" 28.7mm 10.4mm 17.8mm 15.3mm 6.3mm 19.0mm 14.0mm 21.40mm 19.10mm
N2502-05-04-SS Stainless Steel 5/16" 1/4" 30.5mm 15.0mm 18.5mm 16.3mm 6.3mm 22.0mm 16.0mm 23.20mm 22.40mm
N2502-06-02-SS Stainless Steel 3/8" 1/8" 30.5mm 10.4mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 23.2mm 19.1mm
N2502-06-04-SS Stainless Steel 3/8" 1/4" 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19.0mm 17.0mm 23.9mm 22.4mm
N2502-06-06-SS Stainless Steel 3/8" 3/8" 33.3mm 15.0mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 25.9mm 22.4mm
N2502-06-08-SS Stainless Steel 3/8" 1/2" 36.0mm 19.8mm 19.3mm 16.8mm 7.1mm 27.0mm 17.0mm 28.7mm 28.5mm
N2502-08-04-SS Stainless Steel 1/2" 1/4" 36.0mm 15.0mm 21.8mm 22.9mm 7.1mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-06-SS Stainless Steel 1/2" 3/8" 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-08-SS Stainless Steel 1/2" 1/2" 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 28.7mm 28.5mm
N2501-10-06-SS Stainless Steel 5/8" 3/8" 38.1mm 15.0mm 21.8mm 22.9mm 12.7mm 24.0mm 22.0mm 28.0mm 22.4mm
N2502-10-08-SS Stainless Steel 5/8" 1/2" 39.9mm 19.8mm 21.8mm 24.4mm 12.7mm 27.0mm 25.0mm 29.7mm 28.5mm
N2502-12-08-SS Stainless Steel 3/4" 1/2" 39.9mm 19.8mm 21.8mm 24.4mm 15.8mm 27.0mm 28.5mm 29.7mm 28.5mm
N2502-12-12-SS Stainless Steel 3/4" 3/4" 44.7mm 20.6mm 21.8mm 24.4mm 15.8mm 35.0mm 28.5mm 34.6mm 31.8mm
N2502-14-12-SS Stainless Steel 7/8" 3/4" 44.7mm 20.6mm 21.8mm 25.9mm 18.2mm 35.0mm 32.0mm 34.6mm 31.8mm
N2502-16-12-SS Stainless Steel 1" 3/4" 49.0mm 20.6mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 36.8mm 31.8mm
N2502-16-16-SS Stainless Steel 1" 1" 53.6mm 25.4mm 26.4mm 31.2mm 22.3mm 41.0mm 38.0mm 41.4mm 38.1mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
