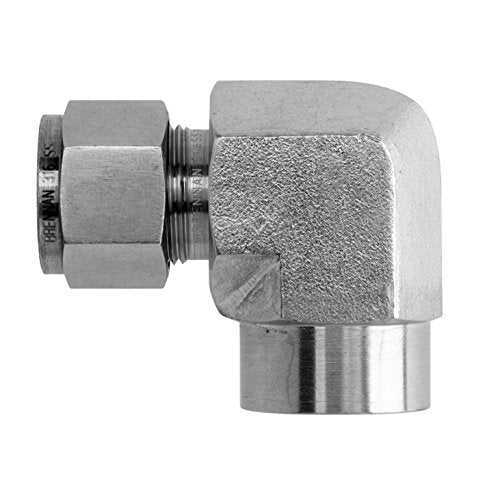

Double Ferrule Tube Fittings: N2502 - Instrumentation Fitting x Female NPT 90° Elbow

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/16in Tube Compression
  • 1/8in Female NPT
Material(s):
  • Stainless Steel
Part Number Material T Tube OD P NPT Female A B C D E Min. F A/F G A/F HX HY
N2502-02-02-B Brass 1/8" 1/8" 24.6mm 10.4mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 18.0mm 19.0mm
N2502-04-02-B Brass 1/4" 1/8" 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 19.0mm
N2502-04-04-B Brass 1/4" 1/4" 29.7mm 15.0mm 17.8mm 15.3mm 4.8mm 19.0mm 14.0mm 22.4mm 22.4mm
N2502-04-06-B Brass 1/4" 3/8" 31.8mm 15.0mm 17.8mm 15.3mm 4.8mm 22.0mm 14.0mm 24.4mm 22.4mm
N2501-06-02-B Brass 3/8" 1/8" 30.5mm 10.4mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 23.2mm 19.1mm
N2502-06-04-B Brass 3/8" 1/4" 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19.0mm 17.0mm 23.9mm 22.4mm
N2502-06-06-B Brass 3/8" 3/8" 33.3mm 15.0mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 25.9mm 22.4mm
N2502-06-08-B Brass 3/8" 1/2" 36.0mm 19.8mm 19.3mm 16.8mm 7.1mm 27.0mm 17.0mm 28.7mm 28.5mm
N2502-08-04-B Brass 1/2" 1/4" 36.0mm 15.0mm 21.8mm 22.9mm 7.1mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-06-B Brass 1/2" 3/8" 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-08-B Brass 1/2" 1/2" 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 28.7mm 28.5mm
N2502-02-02-SS Stainless Steel 1/8" 1/8" 24.6mm 10.4mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 18.0mm 19.0mm
N2502-02-04-SS Stainless Steel 1/8" 1/4" 27.4mm 15.0mm 15.3mm 12.7mm 2.4mm 19.0mm 11.0mm 20.8mm 22.4mm
N2502-03-02-SS Stainless Steel - - - - - - - - - - -
N2502-04-02-SS Stainless Steel 1/4" 1/8" 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 19.0mm
N2502-04-04-SS Stainless Steel 1/4" 1/4" 29.7mm 15.0mm 17.8mm 15.3mm 4.8mm 19.0mm 14.0mm 22.4mm 22.4mm
N2502-04-06-SS Stainless Steel 1/4" 3/8" 31.8mm 15.0mm 17.8mm 15.3mm 4.8mm 22.0mm 14.0mm 24.4mm 22.4mm
N2502-04-08-SS Stainless Steel 1/4" 1/2" 34.6mm 19.8mm 17.8mm 15.3mm 4.8mm 27.0mm 14.0mm 27.2mm 28.5mm
N2502-05-02-SS Stainless Steel 5/16" 1/8" 28.7mm 10.4mm 17.8mm 15.3mm 6.3mm 19.0mm 14.0mm 21.40mm 19.10mm
N2502-05-04-SS Stainless Steel 5/16" 1/4" 30.5mm 15.0mm 18.5mm 16.3mm 6.3mm 22.0mm 16.0mm 23.20mm 22.40mm
N2502-06-02-SS Stainless Steel 3/8" 1/8" 30.5mm 10.4mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 23.2mm 19.1mm
N2502-06-04-SS Stainless Steel 3/8" 1/4" 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19.0mm 17.0mm 23.9mm 22.4mm
N2502-06-06-SS Stainless Steel 3/8" 3/8" 33.3mm 15.0mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 25.9mm 22.4mm
N2502-06-08-SS Stainless Steel 3/8" 1/2" 36.0mm 19.8mm 19.3mm 16.8mm 7.1mm 27.0mm 17.0mm 28.7mm 28.5mm
N2502-08-04-SS Stainless Steel 1/2" 1/4" 36.0mm 15.0mm 21.8mm 22.9mm 7.1mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-06-SS Stainless Steel 1/2" 3/8" 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-08-SS Stainless Steel 1/2" 1/2" 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 28.7mm 28.5mm
N2501-10-06-SS Stainless Steel 5/8" 3/8" 38.1mm 15.0mm 21.8mm 22.9mm 12.7mm 24.0mm 22.0mm 28.0mm 22.4mm
N2502-10-08-SS Stainless Steel 5/8" 1/2" 39.9mm 19.8mm 21.8mm 24.4mm 12.7mm 27.0mm 25.0mm 29.7mm 28.5mm
N2502-12-08-SS Stainless Steel 3/4" 1/2" 39.9mm 19.8mm 21.8mm 24.4mm 15.8mm 27.0mm 28.5mm 29.7mm 28.5mm
N2502-12-12-SS Stainless Steel 3/4" 3/4" 44.7mm 20.6mm 21.8mm 24.4mm 15.8mm 35.0mm 28.5mm 34.6mm 31.8mm
N2502-14-12-SS Stainless Steel 7/8" 3/4" 44.7mm 20.6mm 21.8mm 25.9mm 18.2mm 35.0mm 32.0mm 34.6mm 31.8mm
N2502-16-12-SS Stainless Steel 1" 3/4" 49.0mm 20.6mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 36.8mm 31.8mm
N2502-16-16-SS Stainless Steel 1" 1" 53.6mm 25.4mm 26.4mm 31.2mm 22.3mm 41.0mm 38.0mm 41.4mm 38.1mm
