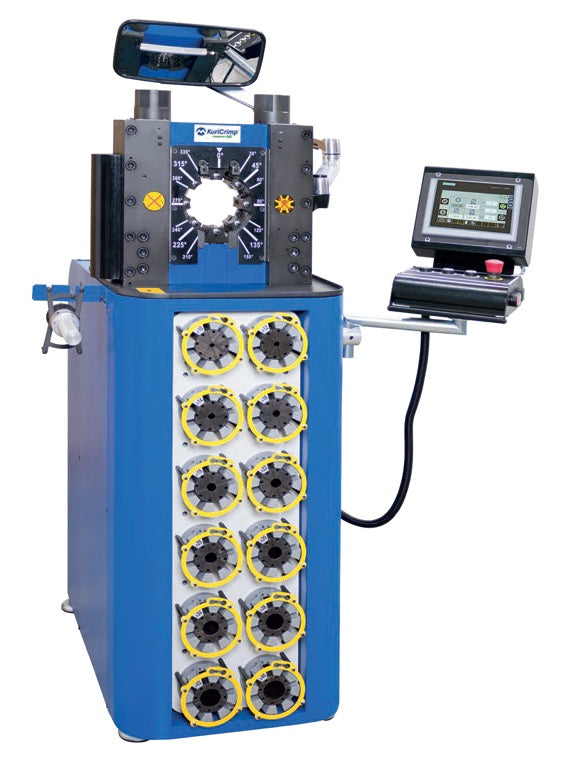

KC4-V59-230/3 KuriCrimp™ by Kuriyama | KC4-V59 Series | High Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 155 Ton Crimping Force | Includes: Electric Foot Pedal, Die Holder Base, Fitting Orientation Protractor, Crimp Calculator

KC4-V59-230/3 KuriCrimp™ by Kuriyama | KC4-V59 Series | High Volume Crimper | 7.5 HP (230 V) 3 PH Motor | 155 Ton Crimping Force | Includes: Electric Foot Pedal, Die Holder Base, Fitting Orientation Protractor, Crimp Calculator

Sale price$41,250.90

Kuriyama of America Inc.
KuriCrimp™ | KC4-V59 Series | High Volume Crimper

A mass production crimper boasting an impressive 3,900* crimps per hour. (*Theoretical with a 1/2" Δ 6mm hose.)

Its back limit switch and advanced Siemen's ES4 computerized controller take efficiency to the highest level.

The crimping chamber is fixed at the 6 o'clock position allowing the hose to rest inside the chamber rather than having to be centered.

Features: Greaseless Operation, Silent Pump, Fixed 6 O'clock Position
Buy More, Save More!
Quantity Price Each
3–5 $38,775.85
6+ $37,125.81
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • KC4-V59 Series
Hose Capacity (in):
  • 1 - 2 Wire: 1-1/2"
  • 4 SP / 6 SP: 1-1/4 / 1
  • 90º Fittings: 1-1/2
  • Industrial: NA
Crimping Force (ton):
  • 155
Opening Diameter:
  • Max. Without Dies (mm / in): 119 / 4.69
  • Max. With Dies (mm / in): 96 / 3.78
  • By Die Size (mm / in): Die Size + 50 / 1.97
Crimper Size:
  • L x W x H (in): 25.9 x 28.3 x 58.6
  • Weight (lbs): 1,199
Control Mechanism:
  • Large, full-color, touch-screen display.
  • Stores up to 1,000 crimp specifications.
  • Built-in crimp diameter calculator.
  • USB port connection.
  • Optional upgrades such as digital caliper, history data save, barcode reader, webcam and WiFi connection.
Motor:
  • 7.5 HP (230 V) 3 PH
Hydraulic Fluid:
  • Type: ISO 46
  • Amount: 70L = 18.50 Gal.
  Part Number Description
KC4-V59-230/3 7.5 HP (230 V) 3 PH Motor
155 Ton Crimping Force
Includes: Electric Foot Pedal, Die Holder Base, Fitting Orientation Protractor, Crimp Calculator
Included Accessories
PEDAL-ES
Electric Foot Pedal		 Die Holder Base (12 pc.) Fitting Orientation Protractor Crimp Calculator
Dies | V69 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV69-6 6.0 - 8.0mm 6mm 85mm 4.0 lbs
KCDV69-8 8.0 - 10.0mm 8mm 85mm 4.0 lbs
KCDV69-10 10.0 - 12.0mm 10mm 85mm 4.0 lbs
KCDV69-12 12.0 - 14.0mm 12mm 85mm 4.0 lbs
KCDV69-14 14.0 - 16.0mm 14mm 85mm 4.0 lbs
KCDV69-16 16.0 - 19.0mm 16mm 85mm 4.0 lbs
KCDV69-19 19.0 - 22.0mm 19mm 85mm 4.0 lbs
KCDV69-22 22.0 - 25.0mm 22mm 85mm 4.0 lbs
KCDV69-25 25.0 - 29.0mm 25mm 85mm 4.0 lbs
KCDV69-29 29.0 - 34.0mm 29mm 85mm 4.0 lbs
KCDV69-34 34.0 - 38.0mm 34mm 85mm 4.0 lbs
KCDV69-38 38.0 - 42.0mm 38mm 85mm 4.0 lbs
KCDV69-42 42.0 - 46.0mm 42mm 85mm 4.0 lbs
KCDV69-46 46.0 - 50.0mm 46mm 85mm 4.0 lbs
KCDV69-50 50.0 - 54.0mm 50mm 85mm 4.0 lbs
Optional Accessories:
KCPQCT-V59
Patented Quick Change Die Tool		 ES4 Upgrades TABLE-KC
Mounted Side Table		 Back Limit Switch Back Mirror
