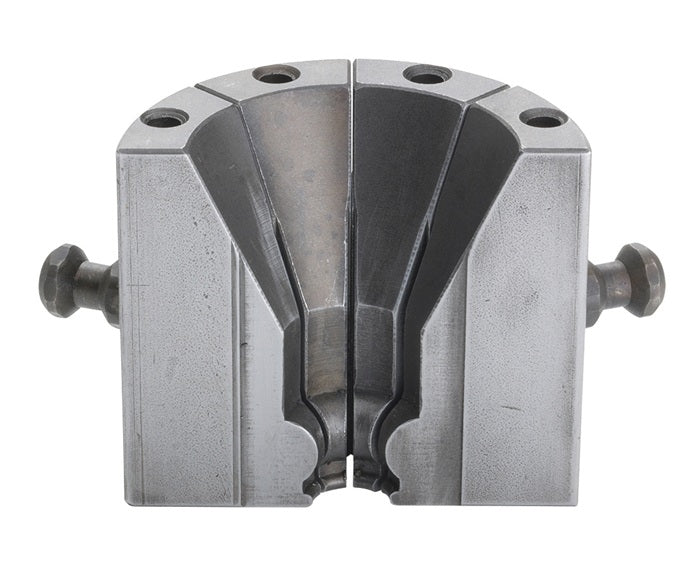

KCDV69-25 KuriCrimp™ by Kuriyama | V69 Series | Die for High Volume Crimper | 25.0 - 29.0mm Crimp Range

KCDV69-25 KuriCrimp™ by Kuriyama | V69 Series | Die for High Volume Crimper | 25.0 - 29.0mm Crimp Range

Sale price$403.94

Kuriyama of America Inc.
KuriCrimp™ | V69 Series | Die for High Volume Crimpers
Buy More, Save More!
Quantity Price Each
5–14 $379.70
15–29 $343.35
30+ $302.96
Discounts applied in cart/checkout.

Product Data:

Brand:
  • KuriCrimp
Series:
  • V69 Series
Compatible Series:
  • KC4-V59 Series
Dies | V69 Series
Die Number Crimp Range(mm) Closed Diameter(mm) Length(mm) Weight(lbs/ea)
KCDV69-6 6.0 - 8.0mm 6mm 85mm 4.0 lbs
KCDV69-8 8.0 - 10.0mm 8mm 85mm 4.0 lbs
KCDV69-10 10.0 - 12.0mm 10mm 85mm 4.0 lbs
KCDV69-12 12.0 - 14.0mm 12mm 85mm 4.0 lbs
KCDV69-14 14.0 - 16.0mm 14mm 85mm 4.0 lbs
KCDV69-16 16.0 - 19.0mm 16mm 85mm 4.0 lbs
KCDV69-19 19.0 - 22.0mm 19mm 85mm 4.0 lbs
KCDV69-22 22.0 - 25.0mm 22mm 85mm 4.0 lbs
KCDV69-25 25.0 - 29.0mm 25mm 85mm 4.0 lbs
KCDV69-29 29.0 - 34.0mm 29mm 85mm 4.0 lbs
KCDV69-34 34.0 - 38.0mm 34mm 85mm 4.0 lbs
KCDV69-38 38.0 - 42.0mm 38mm 85mm 4.0 lbs
KCDV69-42 42.0 - 46.0mm 42mm 85mm 4.0 lbs
KCDV69-46 46.0 - 50.0mm 46mm 85mm 4.0 lbs
KCDV69-50 50.0 - 54.0mm 50mm 85mm 4.0 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
