HTG4100-700X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Light Weight | ID: 7" | Galvanized Steel | 25ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.

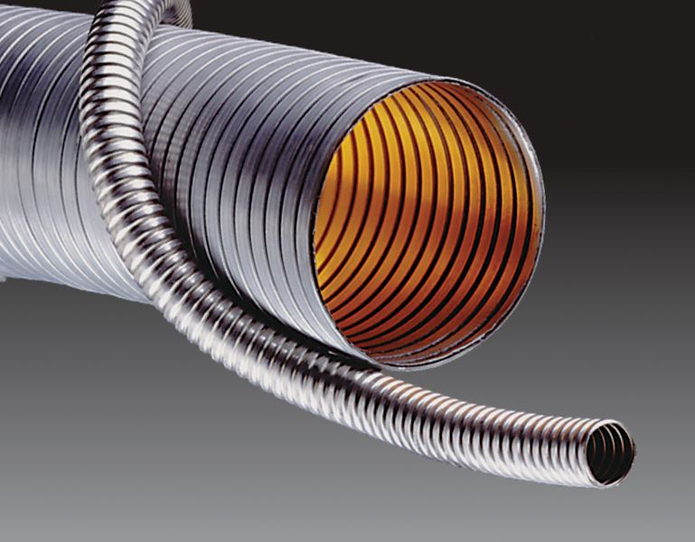

Interlocked Metal Hose
Hose-Tec® HT4000 Series
Rough bore, unlined multi-flex interlocked galvanized steel hose. Lightweight construction handles temperatures up to 750°F for material handling, exhaust, and industrial ducting applications.
750°F Max
High-temperature service rating
Interlocked
Single-strip formed for flexibility & strength
Galvanized Steel
Corrosion-resistant construction
Holds Shape
Formable yet easily repositioned
Specifications
construction & ratings| Tube | Galvanized Steel | Max Service Temp | Up to 750°F |
| Strip Thickness | 0.010" to 0.031" | Standard Length | 25 ft (fully extended) |
| Construction | Single metal strip formed into a flexible interlocked hose for maximum flexibility, strength, and service life | ||
| Applications | Abrasive material handling · Air intake supply · Bulk loading/unloading (railcar & truck) · Dust/fume collection · Engine & truck exhaust · Grain handling · Hot air ducting · Industrial dryer vents · Oven/kiln exhaust · Pneumatic transfer · Vacuum trucks | ||
Product Catalog
13 sizes| Part # | Hose ID | Min Bend Radius | Length | Weight (per ft.) |
|---|---|---|---|---|
| HTG4100-200X25 | 2" | 6.00" | 25 ft | 0.70 lbs |
| HTG4100-225X25 | 2-1/4" | 6.75" | 25 ft | 0.75 lbs |
| HTG4100-250X25 | 2-1/2" | 7.50" | 25 ft | 0.80 lbs |
| HTG4100-275X25 | 2-3/4" | 8.75" | 25 ft | 0.90 lbs |
| HTG4100-300X25 | 3" | 10.00" | 25 ft | 1.00 lbs |
| HTG4100-325X25 | 3-1/4" | 10.50" | 25 ft | 1.10 lbs |
| HTG4100-350X25 | 3-1/2" | 11.00" | 25 ft | 1.20 lbs |
| HTG4100-400X25 | 4" | 12.50" | 25 ft | 1.40 lbs |
| HTG4100-450X25 | 4-1/2" | 14.00" | 25 ft | 1.50 lbs |
| HTG4100-500X25 | 5" | 15.00" | 25 ft | 1.70 lbs |
| HTG4100-600X25 | 6" | 20.00" | 25 ft | 2.00 lbs |
| HTG4100-700X25 | 7" | 22.00" | 25 ft | 2.40 lbs |
| HTG4100-800X25 | 8" | 25.00" | 25 ft | 2.70 lbs |
Standard coil length is 25 ft fully extended; other lengths available on request. If utilizing packing material, service temperatures may vary.
