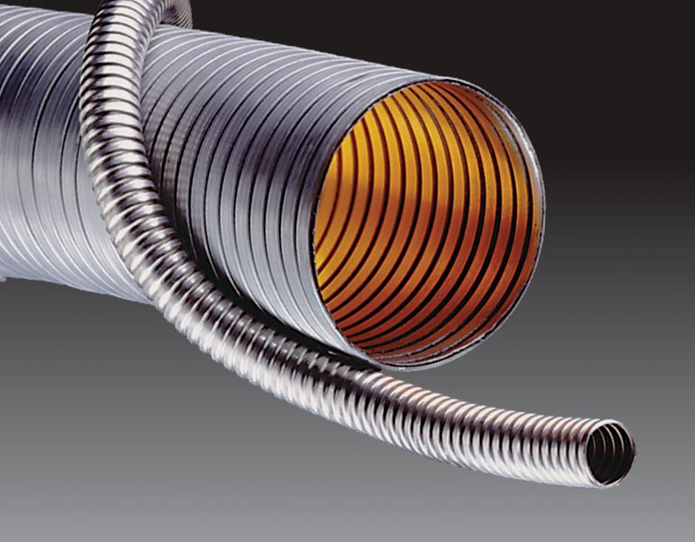

HTG4100-500X25 Hose-Tec by Kuriyama | HT4000 Series | Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose | Light Weight | ID: 5" | Galvanized Steel | 25ft Length
Kuriyama Hose Tec® HT4000 Series Rough Bore (Unlined) "Multi-Flex" Interlocked Metal Hose - Low Pressure - Galvanized Steel
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $404.13 |
| 15–29 | $365.44 |
| 30+ | $322.45 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
Interlocked Metal Hose
Hose-Tec® HT4000 Series
Rough bore, unlined multi-flex interlocked galvanized steel hose. Lightweight construction handles temperatures up to 750°F for material handling, exhaust, and industrial ducting applications.
750°F Max
High-temperature service rating
Interlocked
Single-strip formed for flexibility & strength
Galvanized Steel
Corrosion-resistant construction
Holds Shape
Formable yet easily repositioned
Specifications
construction & ratings| Tube | Galvanized Steel | Max Service Temp | Up to 750°F |
| Strip Thickness | 0.010" to 0.031" | Standard Length | 25 ft (fully extended) |
| Construction | Single metal strip formed into a flexible interlocked hose for maximum flexibility, strength, and service life | ||
| Applications | Abrasive material handling · Air intake supply · Bulk loading/unloading (railcar & truck) · Dust/fume collection · Engine & truck exhaust · Grain handling · Hot air ducting · Industrial dryer vents · Oven/kiln exhaust · Pneumatic transfer · Vacuum trucks | ||
Product Catalog
13 sizes| Part # | Hose ID | Min Bend Radius | Length | Weight (per ft.) |
|---|---|---|---|---|
| HTG4100-200X25 | 2" | 6.00" | 25 ft | 0.70 lbs |
| HTG4100-225X25 | 2-1/4" | 6.75" | 25 ft | 0.75 lbs |
| HTG4100-250X25 | 2-1/2" | 7.50" | 25 ft | 0.80 lbs |
| HTG4100-275X25 | 2-3/4" | 8.75" | 25 ft | 0.90 lbs |
| HTG4100-300X25 | 3" | 10.00" | 25 ft | 1.00 lbs |
| HTG4100-325X25 | 3-1/4" | 10.50" | 25 ft | 1.10 lbs |
| HTG4100-350X25 | 3-1/2" | 11.00" | 25 ft | 1.20 lbs |
| HTG4100-400X25 | 4" | 12.50" | 25 ft | 1.40 lbs |
| HTG4100-450X25 | 4-1/2" | 14.00" | 25 ft | 1.50 lbs |
| HTG4100-500X25 | 5" | 15.00" | 25 ft | 1.70 lbs |
| HTG4100-600X25 | 6" | 20.00" | 25 ft | 2.00 lbs |
| HTG4100-700X25 | 7" | 22.00" | 25 ft | 2.40 lbs |
| HTG4100-800X25 | 8" | 25.00" | 25 ft | 2.70 lbs |
Standard coil length is 25 ft fully extended; other lengths available on request. If utilizing packing material, service temperatures may vary.
