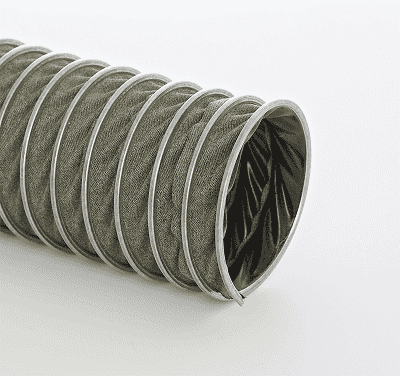

4-Flex-Lok-570-25 by Flexaust | #1960400025 | Flex-Lok 570 Fume Duct Hose | 4 inch | 25ft
4-Flex-Lok-570-25 by Flexaust | #1960400025 | Flex-Lok 570 Fume Duct Hose | 4 inch | 25ft

4-Flex-Lok-570-25 by Flexaust | #1960400025 | Flex-Lok 570 Fume Duct Hose | 4 inch | 25ft

Sale price$656.36

Flexaust Flex-Lok 570 Fume Duct Hose Single-ply green Para-Aramid fabric hose

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
5–14 $616.98
15–29 $557.91
30+ $492.27
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Flex-Lok
Series:
  • Flex-Lok 570
Color(s):
  • Grey

SPECIFICATIONS

Applications: Exhaust Systems, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply green Para-Aramid fabric
Reinforcement: Coated steel wire Cover: N/A
Temperature Range: -40 deg. F to 570 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Fabric is locked around a coated steel wire by a metal strip formed into a clip.
  • Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
  • Excellent compressibility, puncture resistance & tensile strength.
  • Excellent fatigue resistance & good flex characteristics.
  • Ideal for medium temperature, high flex fume venting applications.
  • Available with a non-marking thermoplastic rubber clip cover to protect the helix & the equipment that is attached to the hose.
  • Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flex-Lok 570 3in 3" N/A 2" 6:1 14 14 12.5 lbs
Flex-Lok 570 4in 4" N/A 3" 6:1 11 12.5 17.75 lbs
Flex-Lok 570 5in 5" N/A 3.5" 8:1 9.5 9 17.25 lbs
Flex-Lok 570 6in 6" N/A 4" 8:1 7 8.2 21 lbs
Flex-Lok 570 7in 7" N/A 4.5" 8:1 6.5 7.4 24.25 lbs
Flex-Lok 570 8in 8" N/A 5" 8:1 6 7 27.5 lbs
Flex-Lok 570 9in 9" N/A 5.5" 8:1 4 6.6 31.5 lbs
Flex-Lok 570 10in 10" N/A 6" 8:1 5 6.3 35 lbs
Flex-Lok 570 12in 12" N/A 8" 8:1 2.8 5.1 37.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
