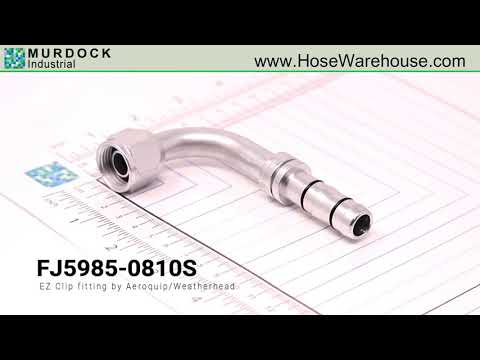

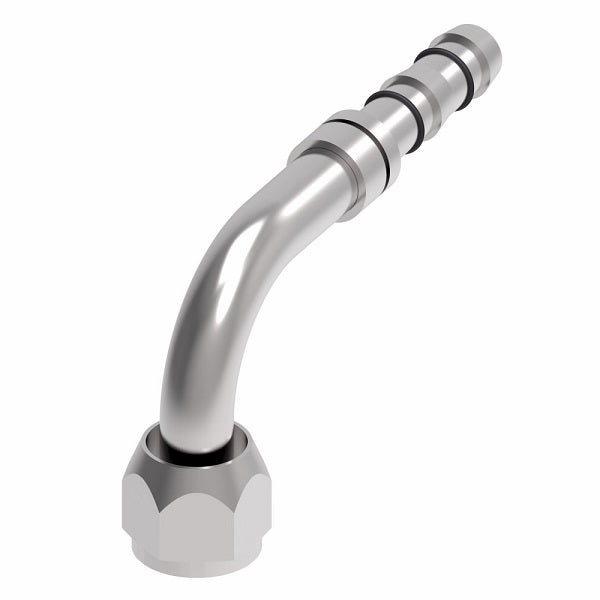

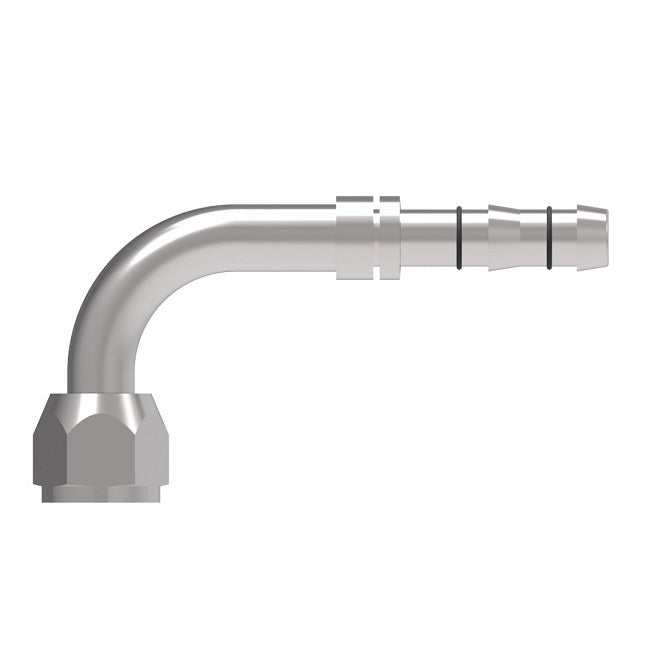

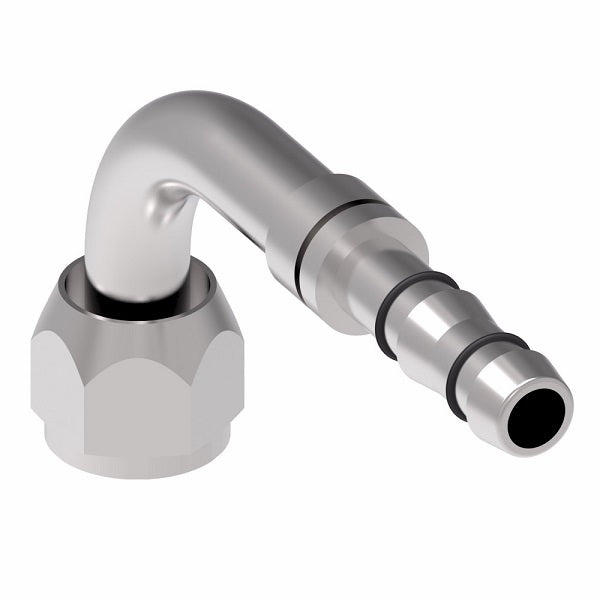

FJ5985-0810S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Short Pilot) | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -10 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) - 90° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $28.46 |
| 40–79 | $25.74 |
| 80+ | $22.71 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | ||||||||
| FJ5985-0606S | 5/8-18 | -06 | 3.32" | 1.79" | 1.38" | 0.75" | FF14171 | 22546-11 | FF90178-11 |
| FJ5985-0608S | 5/8-18 | -08 | 3.33" | 1.79" | 1.38" | 0.75" | FF14172 | 22546-11 | FF90178-11 |
| FJ5985-0806S | 3/4-16 | -06 | 3.86" | 2.33" | 1.62" | 0.88" | FF14171 | 22546-13 | FF90178-13 |
| FJ5985-0808S | 3/4-16 | -08 | 3.77" | 2.23" | 1.62" | 0.88" | FF14172 | 22546-13 | FF90178-13 |
| FJ5985-0810S | 3/4-16 | -10 | 3.78" | 2.23" | 1.62" | 0.88" | FF14173 | 22546-13 | FF90178-13 |
| FJ5985-0812S | - | -12 | - | - | - | - | FF14174 | 22546-13 | FF90178-13 |
| FJ5985-1010S | 7/8-14 | -10 | 4.22" | 2.67" | 1.89" | 1.06" | FF14173 | 22546-15 | FF90178-15 |
| FJ5985-1012S | 7/8-14 | -12 | 4.24" | 2.67" | 1.89" | 1.06" | FF14174 | 22546-15 | FF90178-15 |
| FJ5985-1210S | 1-1/16-14 | -10 | 4.76" | 3.31" | 2.56" | 1.25" | FF14173 | 22546-17 | FF90178-17 |
| FJ5985-1212S | 1-1/16-14 | -12 | 4.74" | 3.16" | 2.56" | 1.25" | FF14174 | 22546-17 | FF90178-17 |
| FJ5985-1216S | 1-1/16-14 | -16 | 4.84" | 3.16" | 2.56" | 1.25" | FF14401 | 22546-17 | FF90178-17 |
