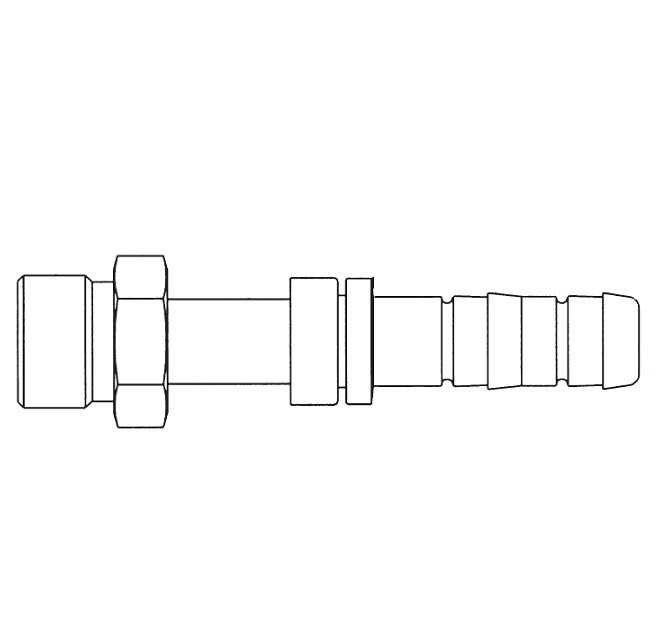

FJ3136-0810S E-Z Clip System by Danfoss | Male O-Ring Pilot (Rigid) Metric Thread | A/C Refrigeration Fitting | M20 Male O-Ring Pilot x -10 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring Pilot (Rigid) Metric Thread - Straight
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $114.70 |
| 20–59 | $103.72 |
| 60+ | $91.52 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
Straight
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | ||
| Neoprene | Green HNBR | |||||||||
| FJ3136-0810S | M20 x 1.5 | -10 | 3.62" | 2.07" | 0.69" | 0.88" | FF14173 | 22546-13 | FF90178-13 | |
