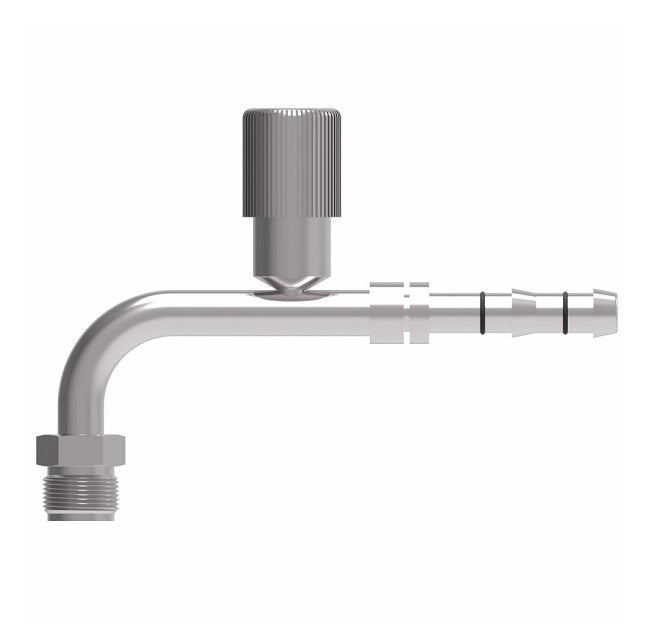

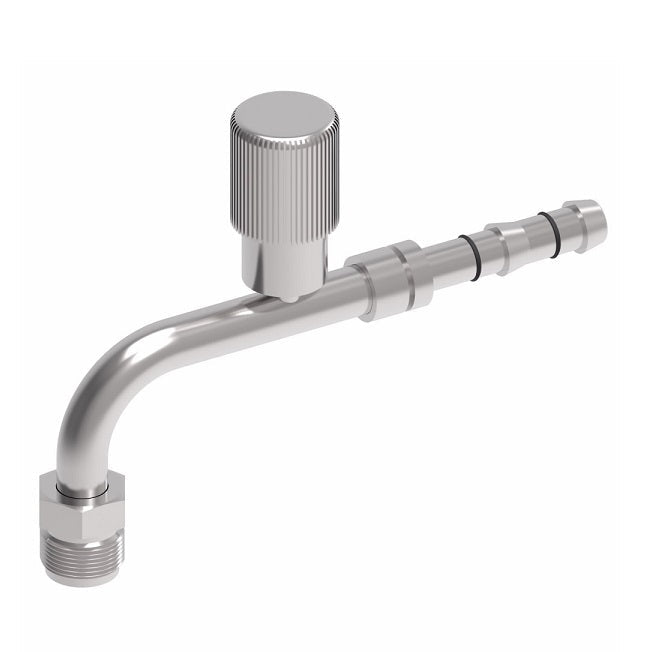

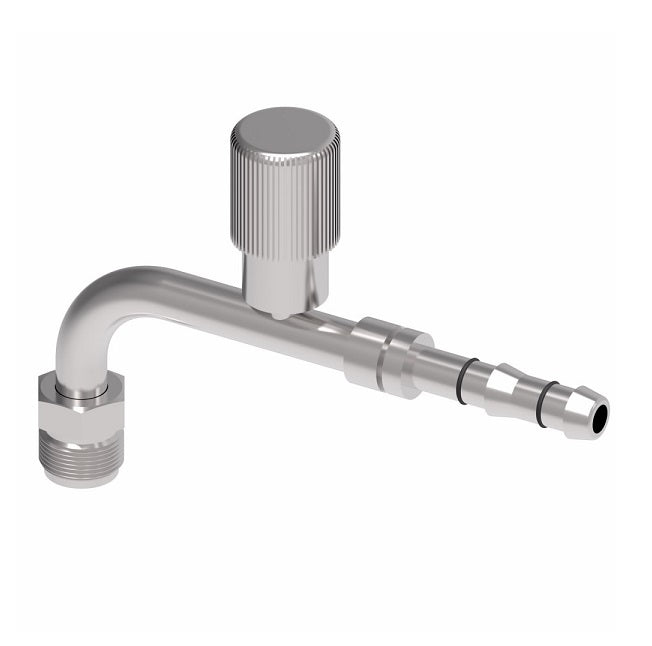

FJ3134-02-0808S E-Z Clip System by Danfoss | Male O-Ring 90° Elbow (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Male O-Ring Short Pilot x -08 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) with R134a High Side Port - 90° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $79.92 |
| 20–59 | $72.27 |
| 60+ | $63.77 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | |||||||||
| FJ3134-01-0606S | 5/8-18 | -06 | - | - | - | - | - | FF14171 | 22546-11 | FF90178-11 |
| FJ3134-02-0808S | 3/4-18 | -08 | 4.61" | 3.07" | 0.63" | 2.31" | 0.75" | FF14172 | 22546-13 | FF90178-13 |
| FJ3134-03-1010S | 7/8-18 | -10 | 4.81" | 3.25" | 0.63" | 2.34" | 0.88" | FF14173 | 22546-15 | FF90178-15 |
