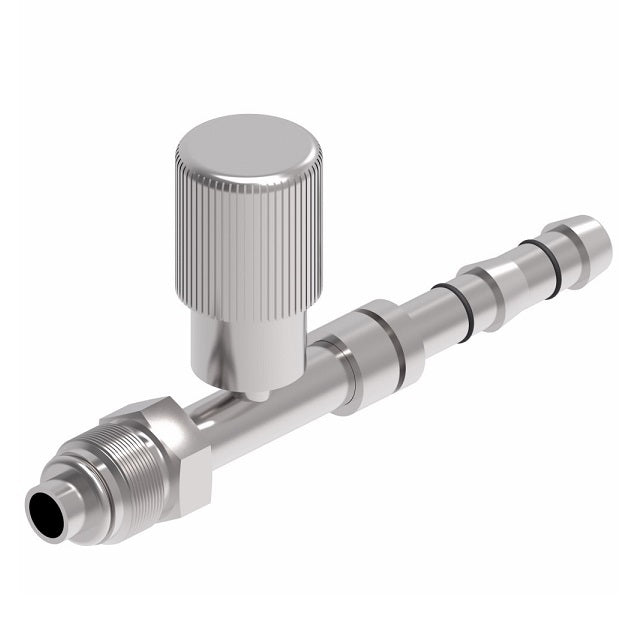

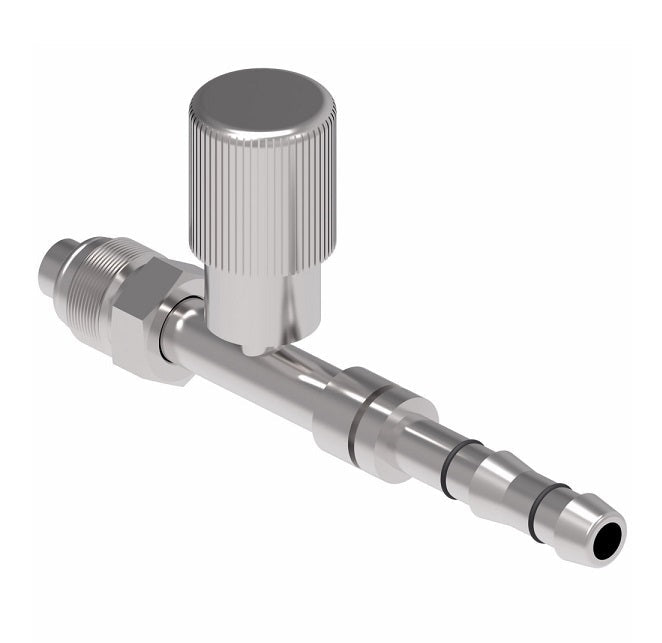

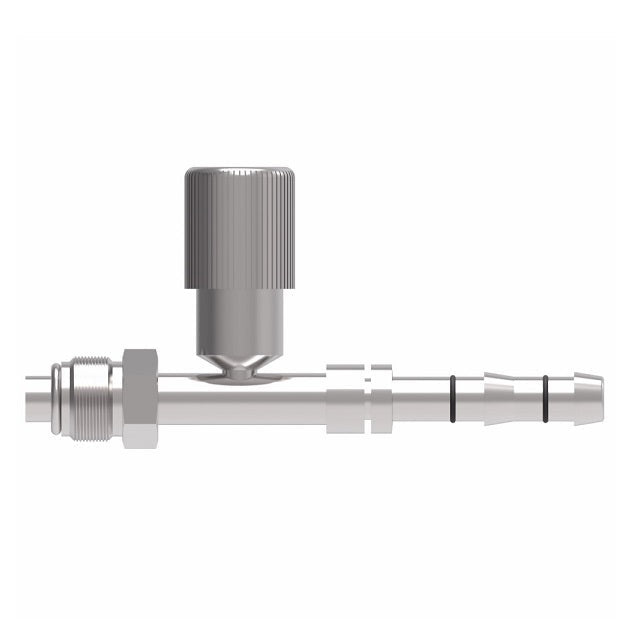

FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel

FJ3132-01-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel

Sale price$102.66

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) with R134a Low Side Port - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.


In stock
Buy More, Save More!
Quantity Price Each
5–19 $96.50
20–59 $87.26
60+ $77.00
Discounts applied in cart/checkout.

Product Data:

Brand:
  • E-Z Clip
Shape:

Straight

Ends Configuration:
  • 5/8in Male O-Ring Short Pilot
  • 5/8in Hose Barb
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3132-01-1010S 7/8-18 -10 4.43" 2.70" 0.63" 0.88" FF14173 22546-15 FF90178-15
FJ3132-02-1012S 7/8-18 -12 4.46" 2.70" 0.63" 0.88" FF14174 22546-15 FF90178-15
