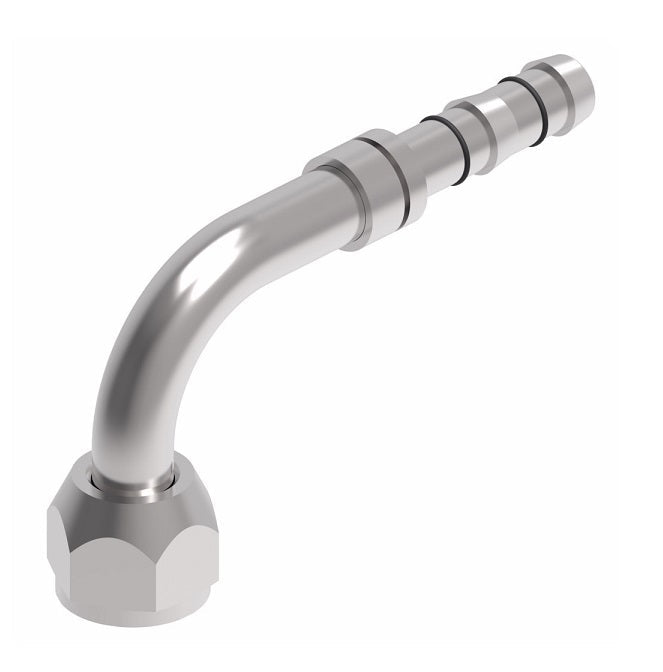

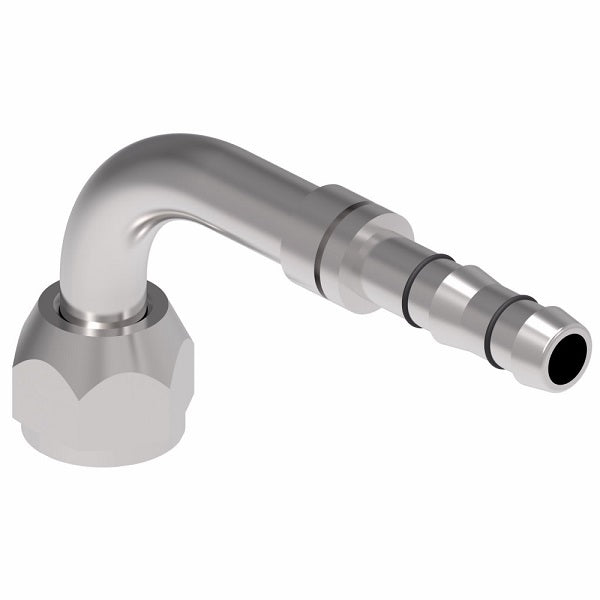

FJ3111-03-0806S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread 90° Elbow | A/C Refrigeration Fitting | M20 Female O-Ring Long Pilot x -06 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) Metric Thread - 90° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $57.92 |
| 40–79 | $52.38 |
| 80+ | $46.22 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | ||||||||
| FJ3111-01-0808S | M20 x 1.5 | -08 | 3.77" | 2.23" | 1.62" | 0.94" | FF14172 | 22546-13 | FF90178-13 |
| FJ3111-02-0810S | M20 x 1.5 | -10 | 3.78" | 2.23" | 1.62" | 0.94" | FF14173 | 22546-13 | FF90178-13 |
| FJ3111-03-0806S | M20 x 1.5 | -06 | 3.75" | 2.23" | 1.62" | 0.94" | FF14171 | 22546-13 | FF90178-13 |
| FJ3409-1212S | M27 x 2 | -12 | 4.74" | 3.16" | 2.56" | 1.25" | FF14174 | 22546-17 | FF90178-17 |
