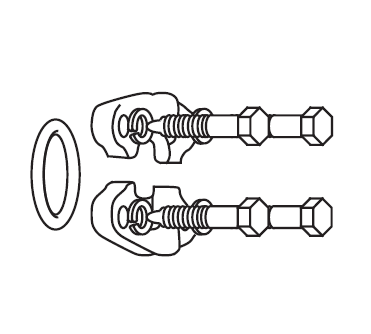

FF593-48 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 3" Flange Size | Steel
Aeroquip® by Danfoss
SAE Code 61 Split Flange Kit (SAE J518) with Buna-N O-Ring (Complete Kit)
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $151.55 |
| 20–59 | $137.04 |
| 60+ | $120.92 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Ends Configuration:
Material(s):
Seal Material(s):
| Technical Info: | |||
|---|---|---|---|
| Specifications: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Components Included in Complete Kit: | |||||||||
| Complete Kit Part Number |
Flange Halves (2 required) Part Number |
Buna-N O-Ring (1 required) Part Number |
Bolts (4 required) Part Number |
Lock washer (4 required) Part Number |
Nominal Flange Size |
A | B | C | Bolt torque lb.-in |
| FF593-08 | 449-74446-8 | FF9446-210 | FF9442-0520-94 | 210104-5S | 1/2" | 1.50" | 0.68" | 0.34" | 175-225 |
| FF593-12 | 449-74446-12 | FF9446-214 | FF9442-0620-94 | 210104-6S | 3/4" | 1.88" | 0.88" | 0.41" | 250-350 |
| FF593-16 | 449-74446-16 | FF9446-219 | FF9442-0620-94 | 210104-2-6S | 1" | 2.06" | 1.04" | 0.41" | 325-425 |
| FF593-20 | 449-74446-20 | FF9446-222 | FF9442-0724-94 | 210104-7S | 1-1/4" | 2.31" | 1.18" | 0.48" | 425-550 |
| FF593-24 | 449-74446-24 | FF9446-225 | FF9442-0824-94 | 210104-8S | 1-1/2" | 2.75" | 1.40" | 0.53" | 550-700 |
| FF593-32 | 449-74446-32 | FF9446-228 | FF9442-0824-94 | 210104-8S | 2" | 3.06" | 1.68" | 0.53" | 650-800 |
| FF593-40 | 449-74446-40 | FF9446-232 | FF9442-0828-94 | 210104-8S | 2-1/2" | 3.50" | 2.00" | 0.53" | 950-1100 |
| FF593-48 | 449-74446-48 | FF9446-237 | FF9442-1028-94 | 210104-10S | 3" | 4.19" | 2.44" | 0.66" | 1650-1800 |
