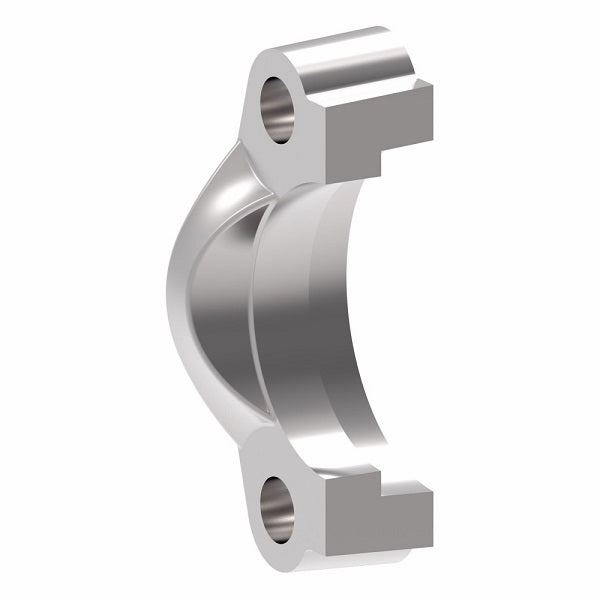

449-74446-48 Aeroquip by Danfoss Code 61 Split Flange Half (1 Flange Half) | for 3" Flange Size | Steel
Aeroquip® by Danfoss
Flange Halves for SAE Code 61 Split Flange Kit (SAE J518)
Important: 2 flange halves are required for a complete assembly.
Flange halves are not sold as a pair. If you require 2 halves, set the quantity below, to 2.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $50.03 |
| 40–79 | $45.24 |
| 80+ | $39.92 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Technical Info: | |||
|---|---|---|---|
| Specifications: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Flange Halves (2 required) Part Number |
Nominal Flange Size |
A | B | C | Bolt torque lb.-in |
||||
| 449-74446-8 | 1/2" | 1.50" | 0.68" | 0.34" | 175-225 | ||||
| 449-74446-12 | 3/4" | 1.88" | 0.88" | 0.41" | 250-350 | ||||
| 449-74446-16 | 1" | 2.06" | 1.04" | 0.41" | 325-425 | ||||
| 449-74446-20 | 1-1/4" | 2.31" | 1.18" | 0.48" | 425-550 | ||||
| 449-74446-24 | 1-1/2" | 2.75" | 1.40" | 0.53" | 550-700 | ||||
| 449-74446-32 | 2" | 3.06" | 1.68" | 0.53" | 650-800 | ||||
| 449-74446-40 | 2-1/2" | 3.50" | 2.00" | 0.53" | 950-1100 | ||||
| 449-74446-48 | 3" | 4.19" | 2.44" | 0.66" | 1650-1800 | ||||
