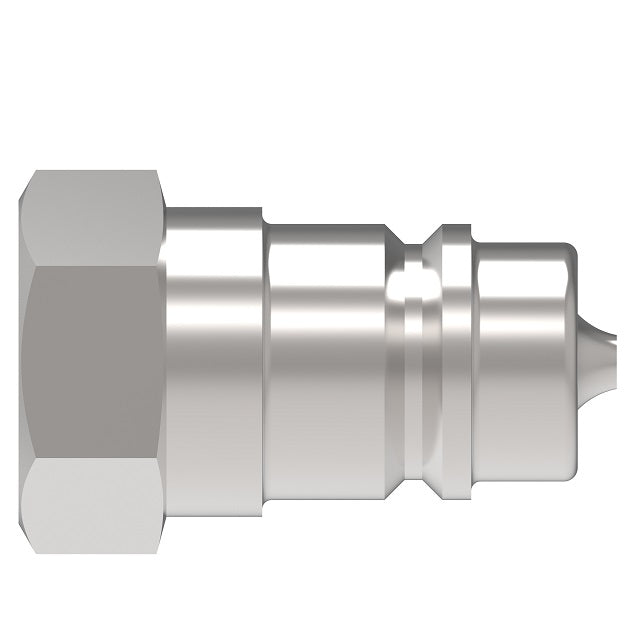

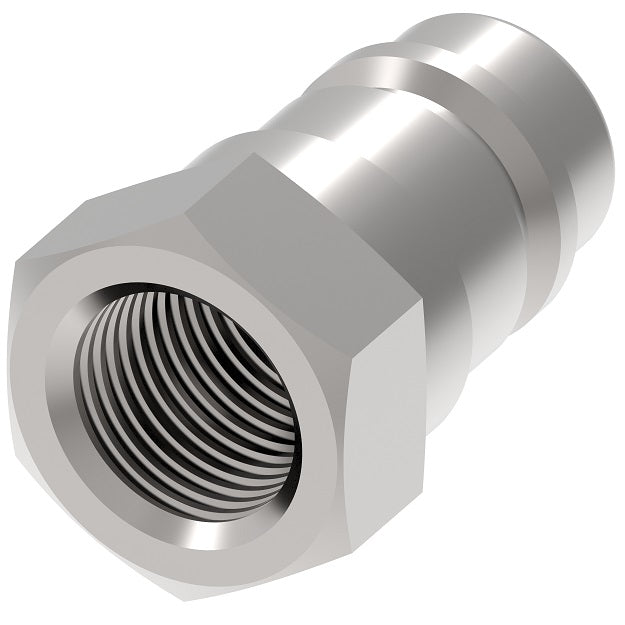

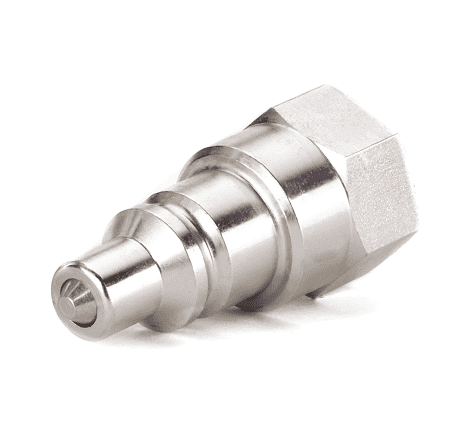

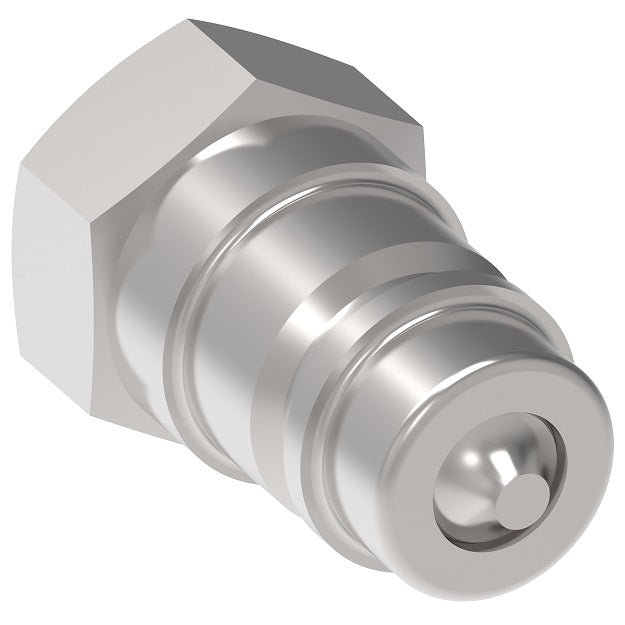

FD35-1002-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female NPT x 3/8" High Pressure Ball Latch | Plug | FKM Seal | Valved | Steel
Hansen® by Danfoss
FD35 Series | High Pressure 10,000 psi Ball Latch
Fluid Transfer and Hydraulic Quick Disconnect Coupling
Danfoss Hansen FD35 Series ball latch has a greater surface contact area for long surface life in rugged high pressure applications. The maximum operating pressure is 10,000 psi.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $47.06 |
| 40–79 | $42.55 |
| 80+ | $37.55 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Body Size | Max. Operating Pressure | Min. Burst Pressure | Vacuum Connected Only |
Rated Flow | Air Inclusion | Fluid Loss | |||
|---|---|---|---|---|---|---|---|---|---|
| 3/8" | 700 bar | 10,000 psi | 2,800 bar | 40,000 psi | 28 in.Hg | 8 lmp | 2 gpm | 0.50 cc. max | 0.50 cc. max |
 |
 |
 |
||||||
|---|---|---|---|---|---|---|---|---|
Socket/Female (Figure 1) |
Plug/Male (Figure 2) |
Complete (Figure 3) |
||||||
| Dimensions (Female NPT, Valved) | ||||||||
| Part Number | Coupling Type |
Body Size |
Port Size |
Thread | Figure | Dimensions | ||
| FKM | A | B | Hex | |||||
| FD35-1002-06-06 | Plug/Male | 3/8" | 3/8" | 3/8-18 Female NPT | 1 | 2.12" (53.8mm) |
- | 0.94" (23.9mm) |
| FD35-1001-06-06 | Socket/Female | 3/8" | 3/8" | 3/8-18 Female NPT | 2 | 2.56" (65.0mm) |
1.27" (32.3mm) |
0.94" (23.9mm) |
| FD35-1000-06-06 | Complete | 3/8" | 3/8" | 3/8-18 Female NPT | 3 | 3.54" (89.9mm) |
- | - |
| Dust Cap & Dust Plug Combo | ||||||||
| FD35-1042-06 | Dust Cap/Plug | 3/8" | ||||||
