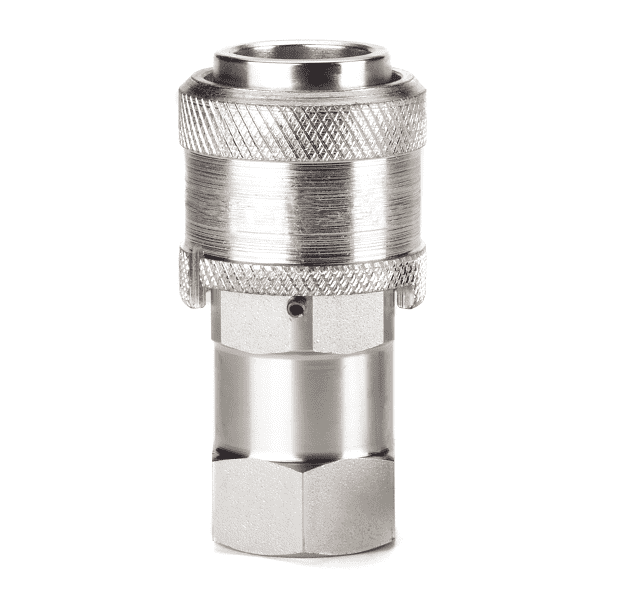

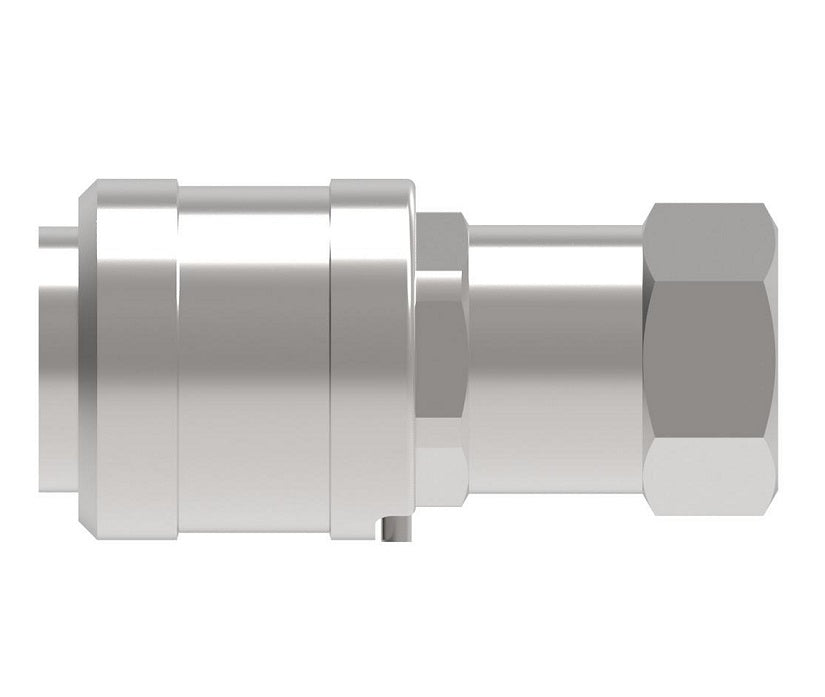

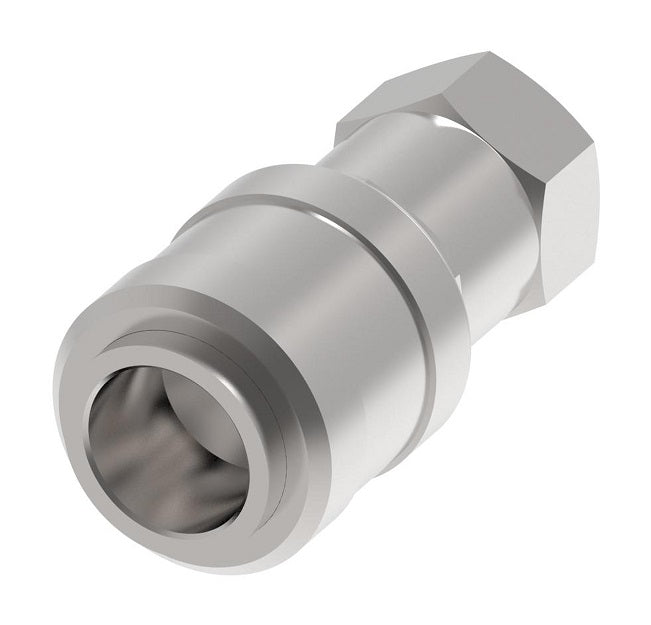

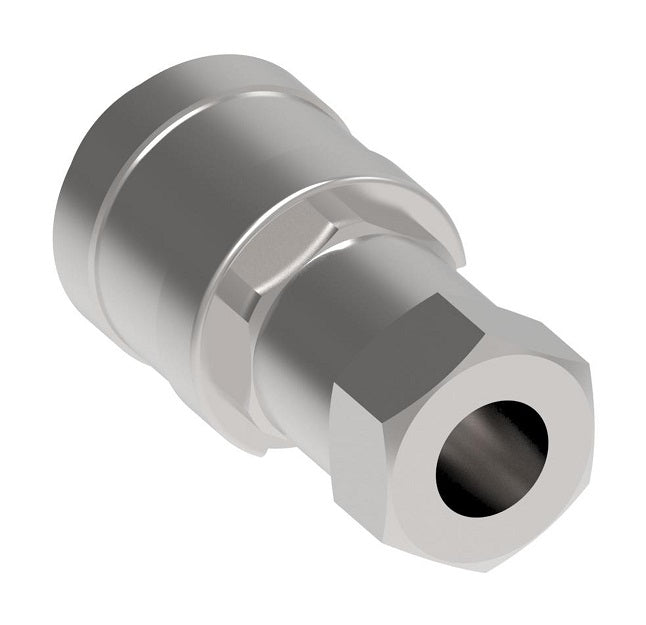

FD35-1001-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female NPT x 3/8" High Pressure Ball Latch | Socket | FKM Seal | Valved | Steel
FD35-1001-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female NPT x 3/8" High Pressure Ball Latch | Socket | FKM Seal | Valved | Steel
FD35-1001-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female NPT x 3/8" High Pressure Ball Latch | Socket | FKM Seal | Valved | Steel
FD35-1001-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female NPT x 3/8" High Pressure Ball Latch | Socket | FKM Seal | Valved | Steel

FD35-1001-06-06 Hansen® by Danfoss | Quick Disconnect Coupling | FD35 Series | 3/8" Female NPT x 3/8" High Pressure Ball Latch | Socket | FKM Seal | Valved | Steel

Sale price$67.52

Hansen® by Danfoss
FD35 Series | High Pressure 10,000 psi Ball Latch

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD35 Series ball latch has a greater surface contact area for long surface life in rugged high pressure applications. The maximum operating pressure is 10,000 psi.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $63.47
40–79 $57.39
80+ $50.64
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • FD35 Series
Shape:

Straight
Product Features:
  • Safety sleeve lock prevents accidental disconnection.
  • Heavy duty back-up ring prevents O-Ring extrusion.
  • Self-sealing poppet valves provide excellent high-and low-pressure sealing.
Applications & Markets:
  • 10,000 psi Hydraulic Applications
  • Hydraulic Tool
  • Hydraulic Ram and Work Loading
Materials:
  • Standard body material: High-resistance carbon steel with zinc trivalent plating.
  • Standard seal materials: FKM
  • Heat-treated and plated steel for greater wear and corrosion resistance.
Body Size Max. Operating Pressure Min. Burst Pressure Vacuum
Connected Only		 Rated Flow Air Inclusion Fluid Loss
3/8" 700 bar 10,000 psi 2,800 bar 40,000 psi 28 in.Hg 8 lmp 2 gpm 0.50 cc. max 0.50 cc. max
Socket/Female (Figure 1)
Plug/Male (Figure 2)
Complete (Figure 3)
Dimensions (Female NPT, Valved)
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Figure Dimensions
FKM A B Hex
FD35-1002-06-06 Plug/Male 3/8" 3/8" 3/8-18 Female NPT 1 2.12"
(53.8mm)		 - 0.94"
(23.9mm)
FD35-1001-06-06 Socket/Female 3/8" 3/8" 3/8-18 Female NPT 2 2.56"
(65.0mm)		 1.27"
(32.3mm)		 0.94"
(23.9mm)
FD35-1000-06-06 Complete 3/8" 3/8" 3/8-18 Female NPT 3 3.54"
(89.9mm)		 - -
Dust Cap & Dust Plug Combo
FD35-1042-06 Dust Cap/Plug 3/8"
