FLOCS Oil Drain Coupling | FD14 Series

Danfoss' FD14 Drain Coupling is designed to serve as a drain port for use with Danfoss' FLOCS (Fast Lube Oil Change System) as well as providing a purging port for use during pre-fill operations.

The FD14 provides a leak free push to connect operation for improving speed and efficiency for oil evacuation systems.

Product Data:

Brand:
  • Hansen
Series:
  • FD14 Series
Seal Material(s):
  • Copper
Features:
  • Low-Profile design with multiple sealing mechanisms.
  • Push-To-Connect socket/female half for easy one hand operation.

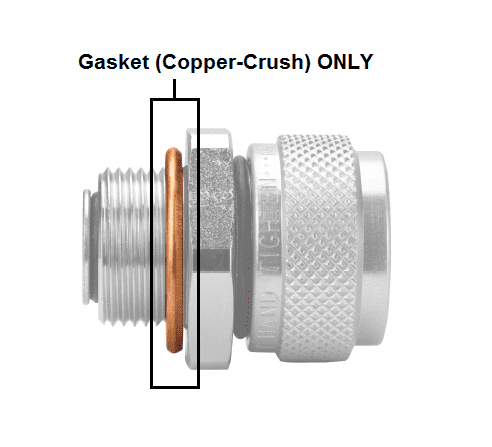

  • Utilizes a Copper-Crush gasket to seat against the port face.
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating with zinc die-cast valve.
  • Standard plug/male half seal material: FKM.
  • Standard socket/female half seal material: Buna-N.
Applications & Markets:
  • Automated oil evacuation systems.
  • Gravity drain oil evacuation systems.
Body Size Max. Operating Pressure Min. Burst Pressure
Connected		 Vacuum
Connected Only		 Rated Flow
3/8" 3.5 bar 50 psi 7.0 bar 200 psi 28 in/Hg 12 lpm 3 gpm
Plug/Male
(Figure 1)
Socket/Female, Valved
(Figure 2)
Socket/Female, Non-Valved
(Figure 3)
FD14 Series | Plugs
Plug, Gasket, & Cap
Assembly
Part Number		 Gasket
(Copper-Crush)
Part Number		 Cap
(Brass)
Part Number		 Coupling Type Body Size Thread Figure Dimensions Min. Assy. Torque
A B Hex
FD14-4002-20-06 FD14-1206-08 FD14-1210-06 Plug/Male 3/8" 1-1/16-12 UN-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1 1/2"
(38.1mm)		 41-81 N-m 30-60* lbs-ft
FD14-4002-05-06 FD14-1206-11 FD14-1210-06 Plug/Male 3/8" 1-1/4-18 UNEF-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/2"
(38.1mm)		 41-81 N-m 30-60* lbs-ft
FD14-4002-14-06 FD14-1206-09 FD14-1210-06 Plug/Male 3/8" 1 1/8-12 UNF-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/2"
(38.1mm)		 41-81 N-m 30-60* lbs-ft
FD14-4002-01-06* FD14-1206-01 FD14-1210-06 Plug/Male 3/8" 1/2-20 UNF-2A 1 1.52"
(38.6mm)		 0.96"
(24.4mm)		 1-1/16"
(27.0mm)		 27-33 N-m 20-24* lbs-ft
FD14-4002-06-06 FD14-1206-07 FD14-1210-06 Plug/Male 3/8" 1-18 UNS-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/4"
(31.8mm)		 41-81 N-m 30-60* lbs-ft
FD14-4002-26-06 None Needed FD14-1210-06 Plug/Male 3/8" 3/4-14 DRYSEAL NPTF 1 1.72"
(43.8mm)		 0.96"
(24.4mm)		 1-1/4"
(31.8mm)		 - -
FD14-4002-09-06 FD14-1206-04 FD14-1210-06 Plug/Male 3/8" 3/4-16 UNF-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/4"
(31.8mm)		 41-68 N-m 30-50* lbs-ft
FD14-4002-10-06 FD14-1206-06 FD14-1210-06 Plug/Male 3/8" 7/8-14 UNF-2A 1 1.54"
(39.1mm)		 0.96"
(24.4mm)		 1-1/4"
(31.8mm)		 41-81 N-m 30-60* lbs-ft
FD14 Series | Socket, Valved
Part Number Coupling Type Body Size Thread Figure Dimensions
A B Hex
FD14-1001-12-06 Socket/Female 3/8" 3/4-14 Dryseal NPTF 2 1.83"
(46.5mm)		 1.80"
(45.7mm)		 1-5/16"
(33.0mm)
FD14 Series | Socket, Non-Valved
Part Number Coupling Type Body Size Thread Figure Dimensions
A B Hex
FD14-4003-10-06 Socket/Female 3/8" 5/8" SOCKETLESS™ 3 2.34"
(59.4mm)		 1.50"
(38.1mm)		 -

* CAUTION: Failure to meet minimum assembly torque could result in fluid leakage.
