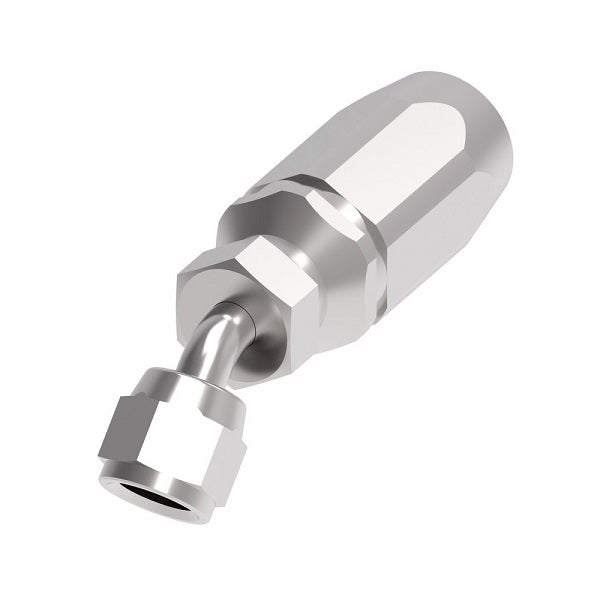

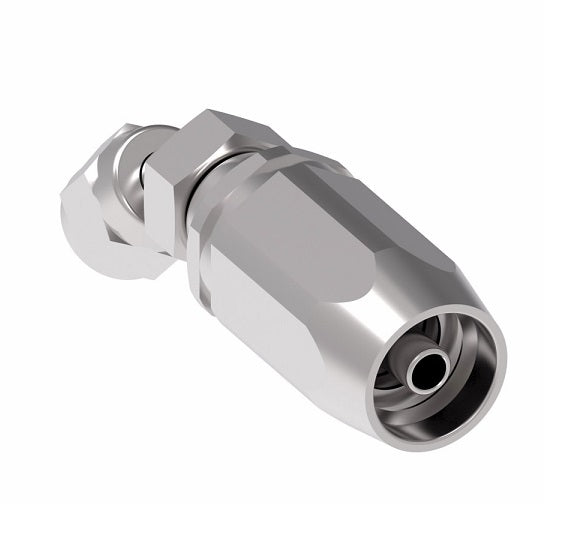

FC5990-0404S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
FC5990-0404S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
FC5990-0404S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

FC5990-0404S Aeroquip by Danfoss | Female 37° JIC Swivel 45° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

Sale price$48.20

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Female 37° JIC Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $45.31
40–79 $40.97
80+ $36.15
Discounts applied in cart/checkout.
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ H
FC5990-0404S -04 7/16-20 2.51" 1.34" 0.17" 0.33"
FC5990-0606S -06 9/16-18 2.82" 1.48" 0.31" 0.39"
FC5990-0808S -08 3/4-16 3.26" 1.75" 0.39" 0.55"
FC5990-1008S -08 - - - - -
FC5990-1212S -12 1-1/16-12 4.15" 2.28" 0.61" 0.78"
FC5990-1616S -16 1-5/16-12 5.03" 2.98" 0.82" 1.07"

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1/4in Female JIC
  • 1/4in Reusable Hose End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
