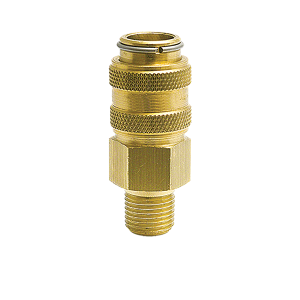

DR21-1M Breco by Foster | DR Series | 1/8" Socket x 1/8" Male NPT Thread | Straight | Brass

DR21-1M Breco by Foster | DR Series | 1/8" Socket x 1/8" Male NPT Thread | Straight | Brass

Sale price$19.54

Foster Quick Disconnects - 1/8" - DR Series Sockets - Breco
Buy More, Save More!
Quantity Price Each
10–39 $18.37
40–79 $16.61
80+ $14.66
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Breco
Series:
  • DR Series
Shape:

Straight
1/8" - DR Series (Interchange with Rectus 21 KA)
  • Maximized flow path allows greater flow than other 1/8" NPT coupler designs
  • 6 retaining balls versus 5 in the Rectus 21 KA provides greater plug retention
  • 9/16" Wrench flats versus 14mm on Rectus 21 KA
  • Ball-holes with corner radius have 65% more ball-to-body contact area and provide longer life and increased reliability
  • Precision molded leak-proof seal
  • Quick, easy push-to-connect design
  • Brass construction for corrosion resistance
Specifications
Material: Brass plugs & sockets
Seal: Buna-N
Air Flow: 17 CFM @ 100 PSIG @ 5.0 PSIG Pressure Drop
Working Pressure: 300 PSIG
Body Sizes: 1/8"
Connection Sizes: 1/8" NPT
Interchangeability: Rectus 21 KA, Tomco SC, Camozzi 5000, and CEJN 223 Series
Part Number Size FPT Description
DR21-1F (Socket) 1/8" 1/8" Brass
DR21-1PF (Plug) 1/8" 1/8" Brass
Part Number Size MPT Description
DR21-1M (Socket) 1/8" 1/8" Brass
DR21-1PM (Plug) 1/8" 1/8" Brass
