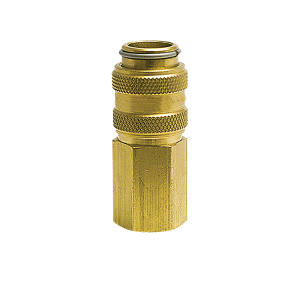

DR21-1F Breco by Foster | DR Series | 1/8" Socket x 1/8" Female NPT Thread | Straight | Brass

DR21-1F Breco by Foster | DR Series | 1/8" Socket x 1/8" Female NPT Thread | Straight | Brass

Sale price$18.05

Foster Quick Disconnects - 1/8" - DR Series Sockets - Breco
Buy More, Save More!
Quantity Price Each
10–39 $16.97
40–79 $15.34
80+ $13.54
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Breco
Series:
  • DR Series
Shape:

Straight
1/8" - DR Series (Interchange with Rectus 21 KA)
  • Maximized flow path allows greater flow than other 1/8" NPT coupler designs
  • 6 retaining balls versus 5 in the Rectus 21 KA provides greater plug retention
  • 9/16" Wrench flats versus 14mm on Rectus 21 KA
  • Ball-holes with corner radius have 65% more ball-to-body contact area and provide longer life and increased reliability
  • Precision molded leak-proof seal
  • Quick, easy push-to-connect design
  • Brass construction for corrosion resistance
Specifications
Material: Brass plugs & sockets
Seal: Buna-N
Air Flow: 17 CFM @ 100 PSIG @ 5.0 PSIG Pressure Drop
Working Pressure: 300 PSIG
Body Sizes: 1/8"
Connection Sizes: 1/8" NPT
Interchangeability: Rectus 21 KA, Tomco SC, Camozzi 5000, and CEJN 223 Series
Part Number Size FPT Description
DR21-1F (Socket) 1/8" 1/8" Brass
DR21-1PF (Plug) 1/8" 1/8" Brass
Part Number Size MPT Description
DR21-1M (Socket) 1/8" 1/8" Brass
DR21-1PM (Plug) 1/8" 1/8" Brass

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
