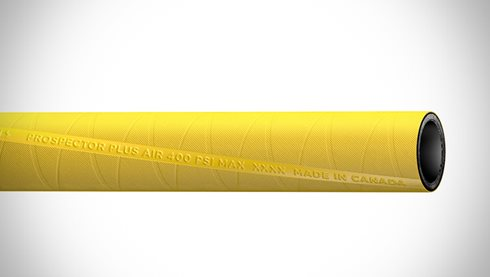

20070738 Prospector™ by ContiTech | Plus Air Heavy Duty Air / Multipurpose Hose | Continental | 1.00" (1") ID | 400 PSI | Yellow | 50ft

20070738 Prospector™ by ContiTech | Plus Air Heavy Duty Air / Multipurpose Hose | Continental | 1.00" (1") ID | 400 PSI | Yellow | 50ft

Sale price$440.83

Continental ContiTech Prospector™ Plus Heavy Duty Air & Multipurpose Hose

A versatile, heavy-duty air hose for mining, construction and industrial applications where medium pressures are encountered.

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–14 $414.38
15–29 $374.71
30+ $330.62
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Prospector Plus Air
Series:
  • Prospector Plus Air
Color(s):
  • Yellow

SPECIFICATIONS

Application: Mining, construction and industrial applications. SAE Rating: N/A
Other Ratings: N/A Tube: 1/2" - 1": Black EPDM synthetic rubber
1-1/4" - 4": ARPM Class C black EPDM synthetic rubber
Reinforcement: 1/2"-1": One braided synthetic yarn
1-1/4"-4": Spiral-plied synthetic fabric		 Cover: Yellow EPDM (wrapped impression)
Temperature Range: -40°F to 220°F (-40°C to 104°C) Fittings: N/A
Branding: 1" 25.4 mm Prospector™ Plus Air 400 psi 2.8 MPa WP Continental ContiTech
Yellow
Part Number		 Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Length Weight Yellow
Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20070685 1/2" 12.7mm 0.94" 23.9mm 400 PSI 2.76 MPa 50ft 0.24 lbs./ft. 0.36 kg/m 53650801605000
20070734 3/4" 19.1mm 1.19" 30.2mm 400 PSI 2.76 MPa 50ft 0.38 lbs./ft. 0.57 kg/m 53650802405000
20070738 1" 25.4mm 1.49" 37.9mm 400 PSI 2.76 MPa 50ft 0.54 lbs./ft. 0.80 kg/m 53650803205000
20317200 1-1/4" 31.8mm 1.66" 42.2mm 400 PSI 2.76 MPa 50ft 0.56 lbs./ft. 0.83 kg/m 54931704000500
20317201 1-1/2" 38.1mm 2.01" 51.1mm 400 PSI 2.76 MPa 50ft 0.83 lbs./ft. 1.24 kg/m 54931704800500
20317204 2" 50.8mm 2.54" 64.4mm 400 PSI 2.76 MPa 50ft 1.08 lbs./ft. 1.61 kg/m 54931706400500
20317223 2-1/2" 63.5mm 3.17" 80.6mm 400 PSI 2.76 MPa 50ft 1.70 lbs./ft. 2.53 kg/m 54931708000500
20317210 3" 76.2mm 3.66" 93.0mm 400 PSI 2.76 MPa 50ft 2.00 lbs./ft. 2.98 kg/m 54931710700500
20317214 4" 101.6mm 4.78" 121.5mm 400 PSI 2.76 MPa 50ft 2.92 lbs./ft. 4.35 kg/m 54931712300500

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
