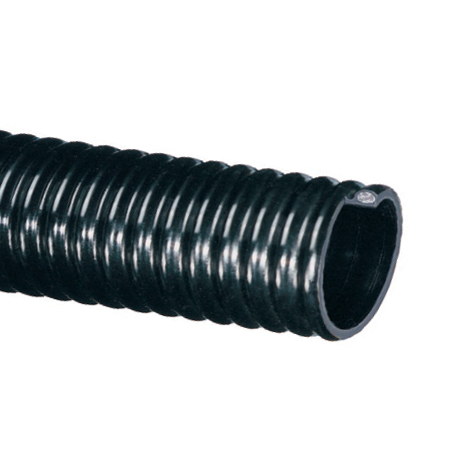

CF600X50 Tigerflex by Kuriyama | CF Series | Cold Flex Extra Heavy Duty Low Temperature Suction Hose | 6" ID | PVC | 50ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Kuriyama Tigerflex CF™ Series Cold Flex Extra Heavy Duty Low Temperature PVC Suction Hose
SPECIFICATIONS
| Application: | Extreme cold conditions, Material handling - standard duty Rental and construction dewatering, Pumps, Trash Slurry handling, Water suction - heavy duty, Irrigation lines | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| CF150X100 | 1-1/2" | 38.1mm | 1.84" | 46.7mm | 100 PSI | 65 PSI | Full | 28 in.Hg | 3" | 100ft | 0.40 lbs |
| CF200X100 | 2" | 50.8mm | 2.41" | 61.2mm | 100 PSI | 65 PSI | Full | 28 in .Hg | 4" | 100ft | 0.75 lbs |
| CF250X100 | 2-1/2" | 63.5mm | 2.93" | 74.5mm | 90 PSI | 55 PSI | Full | 28 in .Hg | 6" | 100ft | 0.99 lbs |
| CF300X100 | 3" | 76.2mm | 3.59" | 91.2mm | 80 PSI | 50 PSI | Full | 28 in. Hg | 7" | 100ft | 1.34 lbs |
| CF400X100 | 4" | 101.6mm | 4.67" | 118.6mm | 65 PSI | 35 PSI | Full | 28 in. Hg | 11" | 100ft | 2.15 lbs |
| CF600X100 | 6" | 152.4mm | 6.87" | 174.4mm | 50 PSI | 25 PSI | Full | 28 in. Hg | 18" | 100ft | 3.76 lbs |
| CF600X50 | 6" | 152.4mm | 6.87" | 174.4mm | 50 PSI | 25 PSI | Full | 28 in. Hg | 18" | 50ft | 3.76 lbs |
