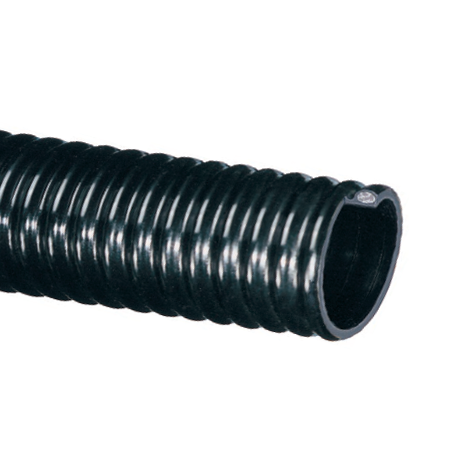

CF150X100 Tigerflex by Kuriyama | CF Series | Cold Flex Extra Heavy Duty Low Temperature Suction Hose | 1-1/2" ID | PVC | 100ft Length

CF150X100 Tigerflex by Kuriyama | CF Series | Cold Flex Extra Heavy Duty Low Temperature Suction Hose | 1-1/2" ID | PVC | 100ft Length

Sale price$610.72

Kuriyama Tigerflex CF™ Series Cold Flex Extra Heavy Duty Low Temperature PVC Suction Hose


Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $574.08
15–29 $519.11
30+ $458.04
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • CF Series
Color(s):
  • Black

Kuriyama Tigerflex CF™ Series Cold Flex Extra Heavy Duty Low Temperature PVC Suction Hose

SPECIFICATIONS

Application: Extreme cold conditions, Material handling - standard duty Rental and construction dewatering, Pumps, Trash Slurry handling, Water suction - heavy duty, Irrigation lines SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Superior Vacuum Rating - Our toughest and most durable liquid suction hose! Extremely thick hose tube and extra large helix provide for a tough, durable hose with all sizes rated to full vacuum (at 68 deg. F).
  • Convoluted Outer Cover - Provides increased hose flexibility
  • Static Dissipative Tube - Specially formulated to help prevent the build-up of static electricity for added safety and help keep material flowing smoothly.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
CF150X100 1-1/2" 38.1mm 1.84" 46.7mm 100 PSI 65 PSI Full 28 in.Hg 3" 100ft 0.40 lbs
CF200X100 2" 50.8mm 2.41" 61.2mm 100 PSI 65 PSI Full 28 in .Hg 4" 100ft 0.75 lbs
CF250X100 2-1/2" 63.5mm 2.93" 74.5mm 90 PSI 55 PSI Full 28 in .Hg 6" 100ft 0.99 lbs
CF300X100 3" 76.2mm 3.59" 91.2mm 80 PSI 50 PSI Full 28 in. Hg 7" 100ft 1.34 lbs
CF400X100 4" 101.6mm 4.67" 118.6mm 65 PSI 35 PSI Full 28 in. Hg 11" 100ft 2.15 lbs
CF600X100 6" 152.4mm 6.87" 174.4mm 50 PSI 25 PSI Full 28 in. Hg 18" 100ft 3.76 lbs
CF600X50 6" 152.4mm 6.87" 174.4mm 50 PSI 25 PSI Full 28 in. Hg 18" 50ft 3.76 lbs
*Non-stock item, minimum order required. Contact customer service for details NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
