CB0036 by Fenner Drives | PowerMax Mounting Clevis | Adapter

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:
  • The PowerMax Advantage:
  • Fenner Drives is the industry leader in molded composite solutions for industrial power transmission and material handling applications. PowerMax Composite products are used where dependability counts most.
  • High-strength glass reinforced composite idlers and pulleys are available in a wide range of sizes for flat, round and V-belts.
  • Fenner Drives' composite products are a lightweight, corrosion resistant alternative to steel, aluminum and cast iron.
Description:
  • Versatile mounting adapters simplify the job of assembly and help reduce overall cost. Made of high quality sintered iron materials and press-fitted in place at the factory so that you only need to handle one component - the "finished" belt idler assembly.

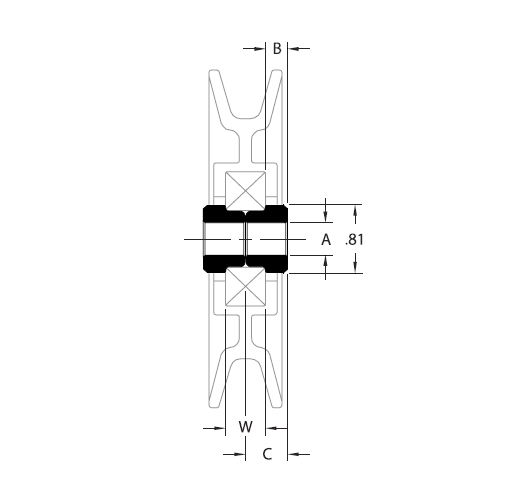

Part Number Dimensions (inches)
A B W C
CB0001 .385 / .395 0.26 0.472 0.5
CB0002 .385 / .395 0.51 0.472 0.75
CB0003 .385 / .395 0.76 0.472 1
CB0004 .510 / .520 0.26 0.472 0.5
CB0005 .510 / .520 0.51 0.472 0.75
CB0006 .510 / .520 0.76 0.472 1
CB0015 .314 / .324 0.08 0.472 0.32
CB0016 .385 / .395 0.17 0.472 0.41
CB0020 .314 / .324 0.1 0.472 0.34
CB0023 .394 / .399 0.64 0.472 0.87
CB0036 .385 / .395 0.7 0.472 0.94
CB0058 .385 / .395 0.33 0.472 0.57
CB0100 .397 / .407 0.26 0.472 0.5
