CB0006 by Fenner Drives | PowerMax Mounting Clevis | Adapter

CB0006 by Fenner Drives | PowerMax Mounting Clevis | Adapter

Sale price$5.20
Fenner Drives - Powermax Pulleys & Idlers - Clevis Adapters
Buy More, Save More!
Quantity Price Each
20–39 $4.89
40–79 $4.42
80+ $3.90
Discounts applied in cart/checkout.

Product Data:

Brand:
  • PowerMax
Series:
  • CB Series
Overview:
  • The PowerMax Advantage:
  • Fenner Drives is the industry leader in molded composite solutions for industrial power transmission and material handling applications. PowerMax Composite products are used where dependability counts most.
  • High-strength glass reinforced composite idlers and pulleys are available in a wide range of sizes for flat, round and V-belts.
  • Fenner Drives' composite products are a lightweight, corrosion resistant alternative to steel, aluminum and cast iron.
Description:
  • Versatile mounting adapters simplify the job of assembly and help reduce overall cost. Made of high quality sintered iron materials and press-fitted in place at the factory so that you only need to handle one component - the "finished" belt idler assembly.

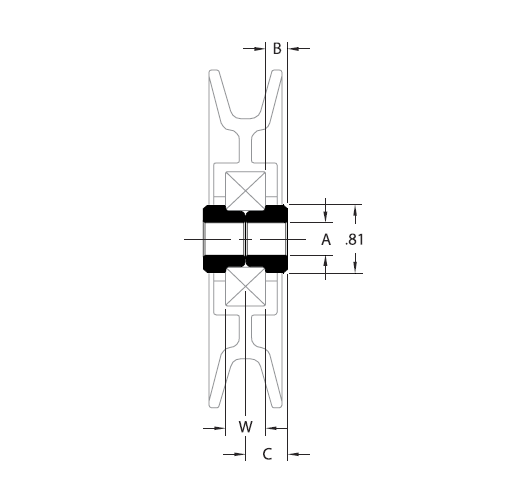

Part Number Dimensions (inches)
A B W C
CB0001 .385 / .395 0.26 0.472 0.5
CB0002 .385 / .395 0.51 0.472 0.75
CB0003 .385 / .395 0.76 0.472 1
CB0004 .510 / .520 0.26 0.472 0.5
CB0005 .510 / .520 0.51 0.472 0.75
CB0006 .510 / .520 0.76 0.472 1
CB0015 .314 / .324 0.08 0.472 0.32
CB0016 .385 / .395 0.17 0.472 0.41
CB0020 .314 / .324 0.1 0.472 0.34
CB0023 .394 / .399 0.64 0.472 0.87
CB0036 .385 / .395 0.7 0.472 0.94
CB0058 .385 / .395 0.33 0.472 0.57
CB0100 .397 / .407 0.26 0.472 0.5

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
