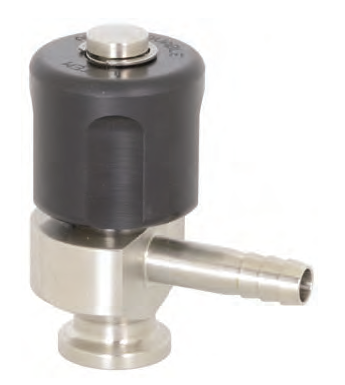

BSVACV-N200375 Dixon Valve Angle Sample Valve - 2" Clamp x 1/2" Barb - 316L Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
What are the Features?
- All 316L stainless wetted part construction
- Standard finish to 20 Ra ID / 32 Ra OD
- FKM O-ring
- Fully traceable (material test reports)
- Virgin PTFE seat for positive closure
- Minimal internal dead-leg area
- Temperature rating: 300°F at 200 PSI
Dimensions |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Valve Size | |||||||
| A | B | Barb Ø C |
D | Ferrule Ø E |
||||
| BSVACV-N050025 | 1/2" | 0.93" | 0.21" | 1/4" | 1.76" | 0.99" | ||
| BSVACV-N050375 | 1/2" | 0.92" | 0.28" | 3/8" | 1.78" | 1.99" | ||
| BSVACV-N050050 | 1/2" | 0.85" | 0.37" | 1/2" | 1.76" | 0.99" | ||
| BSVACV-N075025 | 3/4" | 0.93" | 0.21" | 1/4" | 1.76" | 0.99" | ||
| BSVACV-N075375 | 3/4" | 0.92" | 0.28" | 3/8" | 1.78" | 0.99" | ||
| BSVACV-N100025 | 1" | 0.96" | 0.21" | 1/4" | 2.04" | 1.98" | ||
| BSVACV-N100050 | 1" | 0.88" | 0.37" | 1/2" | 2.03" | 1.98" | ||
| BSVACV-N150025 | 1-1/2" | 0.96" | 0.21" | 1/4" | 2.04" | 1.98" | ||
| BSVACV-N150375 | 1-1/2" | 0.95" | 0.28" | 3/8" | 2.03" | 1.98" | ||
| BSVACV-N150050 | 1-1/2" | 0.88" | 0.37" | 1/2" | 2.03" | 1.98" | ||
| BSVACV-N200025 | 2" | 0.96" | 0.21" | 1/4" | 2.31" | 2.52" | ||
| BSVACV-N200375 | 2" | 0.95" | 0.28" | 3/8" | 2.31" | 2.52" | ||
| BSVACV-N200050 | 2" | 0.88" | 0.37" | 1/2" | 2.29" | 2.52" | ||
| Replacement Parts: | ||||||||
| BSVA-NRKS050 | 1/2" Repair Kit For BSVACV Angle Sample Valves | Repair Kit contains: #3 (1) PTFE seat #4 (1) 18-8 stainless steel E-clip #5 (1) FKM O-ring #6 (1) 316 stainless steel stop pin |
||||||
