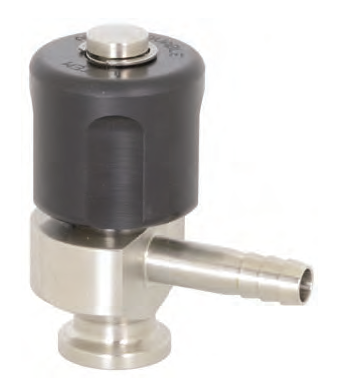

BSVACV-N100050 Dixon Valve Angle Sample Valve - 1" Clamp x 1/2" Barb - 316L Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Features: | |||
|---|---|---|---|
|
| Part Number | Valve Size | Dimensions |
||||||
|---|---|---|---|---|---|---|---|---|
| A | B | Barb Ø C |
D | Ferrule Ø E |
||||
| BSVACV-N050025 | 1/2" | 0.93" | 0.21" | 1/4" | 1.76" | 0.99" | ||
| BSVACV-N050375 | 1/2" | 0.92" | 0.28" | 3/8" | 1.78" | 1.99" | ||
| BSVACV-N050050 | 1/2" | 0.85" | 0.37" | 1/2" | 1.76" | 0.99" | ||
| BSVACV-N075025 | 3/4" | 0.93" | 0.21" | 1/4" | 1.76" | 0.99" | ||
| BSVACV-N075375 | 3/4" | 0.92" | 0.28" | 3/8" | 1.78" | 0.99" | ||
| BSVACV-N100025 | 1" | 0.96" | 0.21" | 1/4" | 2.04" | 1.98" | ||
| BSVACV-N100050 | 1" | 0.88" | 0.37" | 1/2" | 2.03" | 1.98" | ||
| BSVACV-N150025 | 1-1/2" | 0.96" | 0.21" | 1/4" | 2.04" | 1.98" | ||
| BSVACV-N150375 | 1-1/2" | 0.95" | 0.28" | 3/8" | 2.03" | 1.98" | ||
| BSVACV-N150050 | 1-1/2" | 0.88" | 0.37" | 1/2" | 2.03" | 1.98" | ||
| BSVACV-N200025 | 2" | 0.96" | 0.21" | 1/4" | 2.31" | 2.52" | ||
| BSVACV-N200375 | 2" | 0.95" | 0.28" | 3/8" | 2.31" | 2.52" | ||
| BSVACV-N200050 | 2" | 0.88" | 0.37" | 1/2" | 2.29" | 2.52" | ||
| Replacement Parts: | ||||||||
| BSVA-NRKS050 | 1/2" Repair Kit For BSVACV Angle Sample Valves | Repair Kit contains: #3 (1) PTFE seat #4 (1) 18-8 stainless steel E-clip #5 (1) FKM O-ring #6 (1) 316 stainless steel stop pin |
||||||
