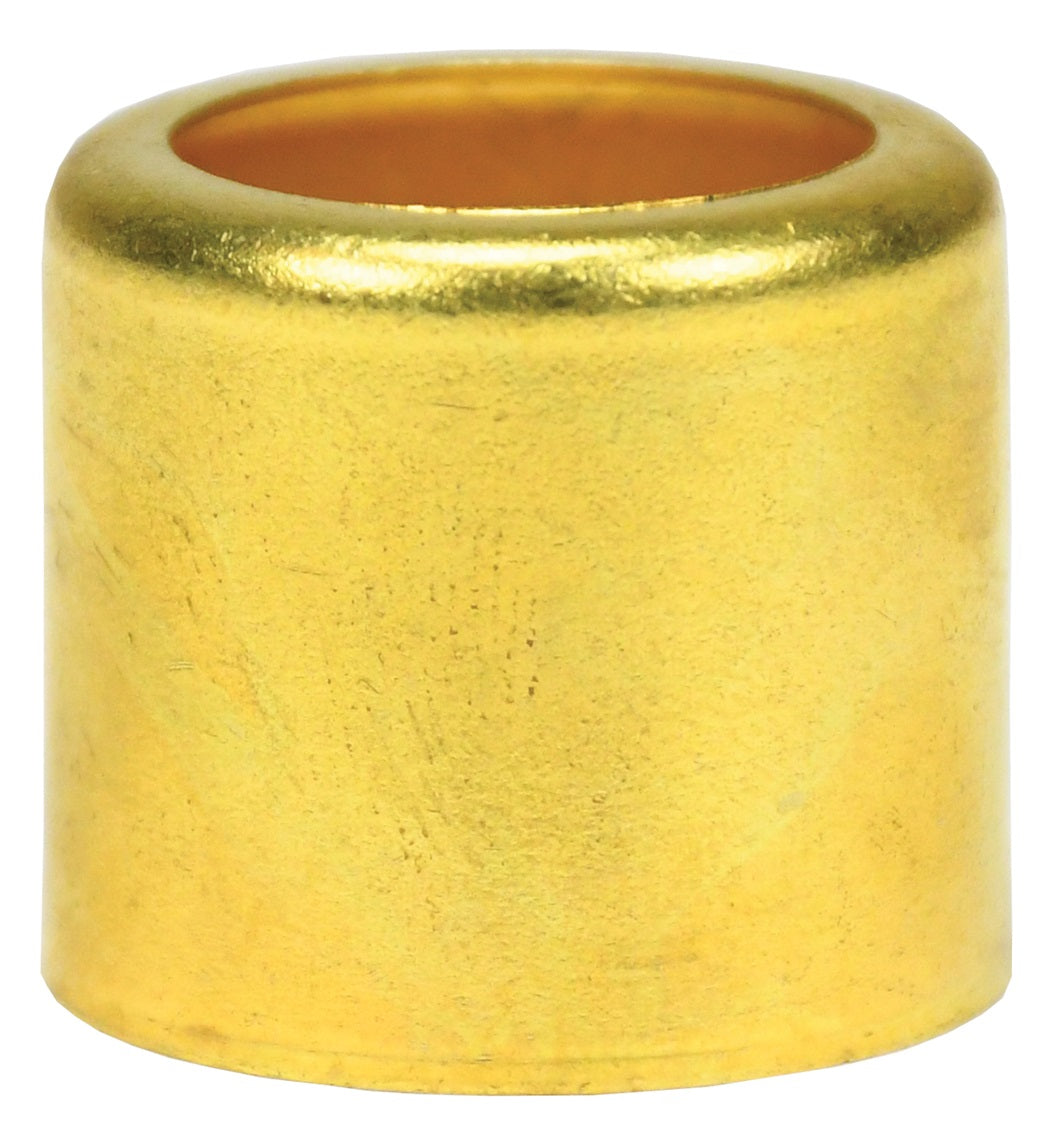

BFMW1225 by Dixon Valve | Hose Crimp Ferrule for Fluid | 1.225" Ferrule ID | Brass | (Pack of 25)
Dixon Valve
Hose Crimp Ferrule for Fluid
For use with medium weight air hose.
Package Quantity: 25 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $40.68 |
| 40–79 | $36.79 |
| 80+ | $32.46 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| Material: | |||
|---|---|---|---|
|
| Part Number | Ferrule ID | Ferrule Length | End Hole Size | Metal Gauge | Ribbed Die | Plain Die | Standard Ind. Pt Num. |
Previous Part Number |
|---|---|---|---|---|---|---|---|---|
| BF800 | .800" | .844" | .688" | .024" | R28 | P29 | - | - |
| BF825 | .825" | .844" | .688" | .024" | R27 | P28 | - | - |
| BF850 | .850" | .568" | .688" | .019" | R26 | P27 | Z | - |
| BFW875 | .875" | .844" | .688" | .024" | R25 | P26 | 7244A | 2008750C |
| BFW900 | .900" | .844" | .688" | .024" | R24 | P25 | 5029A | - |
| BFW925 | .925" | .840" | .690" | .025" | R23 | P24 | 7242A | 2009250C |
| BFW975 | .975" | .844" | .688" | .024" | R21 | P22 | 5028A | 2009750C |
| BFW1025 | 1.025" | .844" | .693" | .024" | R19 | P20 | 7114A | 2001025C |
| BFW1175 | 1.175" | .844" | .875" | .024" | R13 | P14 | 7088A | 2001175C |
| BFMW1050 | 1.050" | .625" | .750" | .025" | R18 | P19 | 3605 | - |
| BFMW1100 | 1.100" | .843" | .812" | .023" | R16 | P17 | 5027A | 2001100C |
| BFMW1150 | 1.150" | .844" | .880" | .024" | R15 | P15 | 7104A | 2009950C |
| BFMW1225 | 1.225" | .875" | .875" | .025" | R11 | P12 | 875-K | 2001225C |
| BFMW1275 | 1.275" | .875" | 1.000" | .025" | R9 | P10 | 875-I | - |
