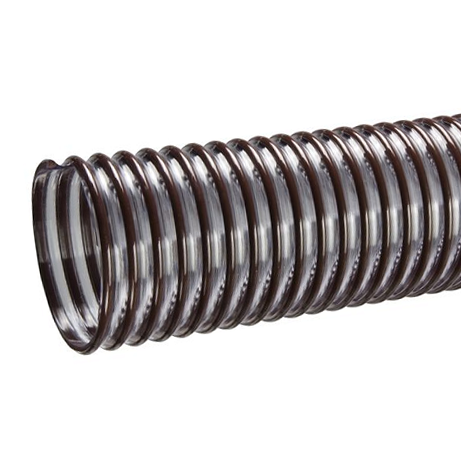

BARK500X100 Tigerflex by Kuriyama | BARK Series | Bark Hose Standard Duty Material Handling Hose | 5" ID | PVC | 100ft Length
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Lawn and leaf collection, Material handling - standard duty, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | PVC |
| Reinforcement: | Rigid PVC Helix | Cover: | N/A |
| Temperature Range: | -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | Specifications | RoHS(10) |
| Other Features: | |||
|
|||
| Part Number | ID | ID | OD | OD | Working Pressure (PSI) | Vacuum Rating (in. Hg) | Approx. Bending Radius | Standard Length | Weight (Lbs/Ft) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | 68 deg. F | 104 deg. F | 68 deg. F | 104 deg. F | (in @ 68 deg. F) | (ft.) | ||
| BARK400X100 | 4" | 101.6mm | 4.45" | 113.0mm | 18 PSI | 11 PSI | 15 in. Hg | 10 in. Hg | 10" | 100ft | 0.95 lbs |
| BARK500X100 | 5" | 127.0mm | 5.47" | 139mm | 17 PSI | 10 PSI | 14 in. Hg | 8 in. Hg | 11" | 100ft | 1.29 lbs |
