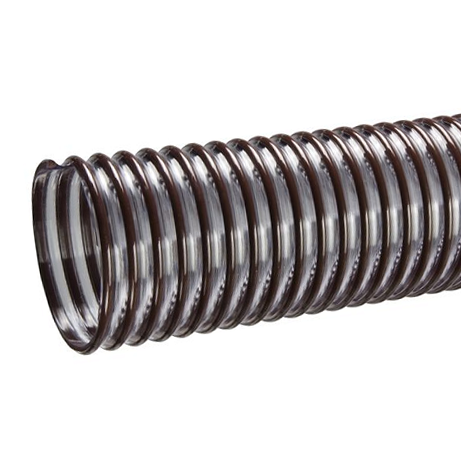

BARK400X100 Tigerflex by Kuriyama | BARK Series | Bark Hose Standard Duty Material Handling Hose | 4" ID | PVC | 100ft Length

BARK400X100 Tigerflex by Kuriyama | BARK Series | Bark Hose Standard Duty Material Handling Hose | 4" ID | PVC | 100ft Length

Sale price$1,215.25

Kuriyama Tigerflex BARK™ Series Bark Hose Standard Duty PVC Material Handling Hose


Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,142.34
8–14 $1,093.73
15+ $972.20
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Tigerflex
Series:
  • AMPH Series
Color(s):
  • Black & Clear/Semi-Clear

SPECIFICATIONS

Application: Lawn and leaf collection, Material handling - standard duty, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Abrasion Resistant PVC Tube - Formulated from highly durable PVC compounds for increased abrasion and tear resistance versus standard PVC hoses.
  • Convoluted Outer Cover - Provides increased hose flexibility. Allows for easier unwinding and winding on hose reels.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
BARK400X100 4" 101.6mm 4.45" 113.0mm 18 PSI 11 PSI 15 in. Hg 10 in. Hg 10" 100ft 0.95 lbs
BARK500X100 5" 127.0mm 5.47" 139mm 17 PSI 10 PSI 14 in. Hg 8 in. Hg 11" 100ft 1.29 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
