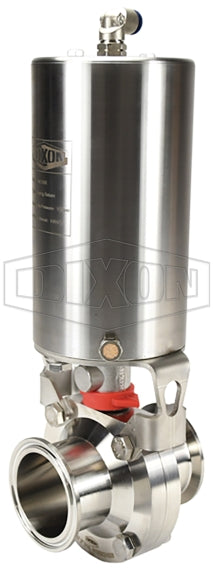

B5107S100CCG Dixon Valve 1" Butterfly Valve - Clamp x Clamp - Vertical Spring Return (Normally Closed) Pneumatic Canister Style Actuator - Silicone Seats (Replaces: B5101S100CC-G)
Dixon Sanitary Valves
Butterfly Valve Automation - Clamp x Clamp - 316L Stainless Steel
Vertical Spring Return (Normally Closed) Pneumatic Canister Style Actuator
B5107S100CCG Replaces Part Number: B5101S100CC-G
Shipped fully assembled, including pneumatic actuator and mounting bracket assembly
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $741.39 |
| 15–29 | $670.40 |
| 30+ | $591.53 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Material(s):
Seal Material(s):
| Note: | |||
|---|---|---|---|
|
 Dimensions |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Silicone Part Number |
EPDM Part Number |
FKM Part Number |
Valve Size | A | B | C | D | E | F | G | H |
| - | B5107E050CCG | - | 1/2" | 3.5" | 3.1" | 2.7" | 8.7" | 9.6" | 3.4" | 4.0" | 14.7" |
| - | B5107E075CCG | - | 3/4" | 3.5" | 3.1" | 2.7" | 8.7" | 9.6" | 3.4" | 4.0" | 14.7" |
| B5107S100CCG | B5107E100CCG | B5107V100CCG | 1" | 3.5" | 3.1" | 2.7" | 8.7" | 9.6" | 3.4" | 4.0" | 14.7" |
| - | B5107E250CCG | - | 2-1/2" | 3.8" | 4.6" | 3.5" | 9.5" | 10.4" | 3.4" | 4.0" | 15.5" |
