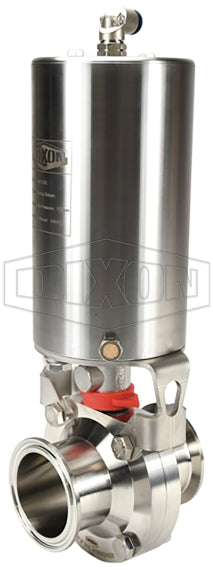

B5107E050CCG Dixon Valve 1/2" Butterfly Valve - Clamp x Clamp - Vertical Spring Return (Normally Closed) Pneumatic Canister Style Actuator - EPDM Seats (Replaces: B5101E050CC-G)
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Note: | |||
|---|---|---|---|
|
 Dimensions |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Silicone Part Number |
EPDM Part Number |
FKM Part Number |
Valve Size | A | B | C | D | E | F | G | H |
| - | B5107E050CCG | - | 1/2" | 3.5" | 3.1" | 2.7" | 8.7" | 9.6" | 3.4" | 4.0" | 14.7" |
| - | B5107E075CCG | - | 3/4" | 3.5" | 3.1" | 2.7" | 8.7" | 9.6" | 3.4" | 4.0" | 14.7" |
| B5107S100CCG | B5107E100CCG | B5107V100CCG | 1" | 3.5" | 3.1" | 2.7" | 8.7" | 9.6" | 3.4" | 4.0" | 14.7" |
| - | B5107E250CCG | - | 2-1/2" | 3.8" | 4.6" | 3.5" | 9.5" | 10.4" | 3.4" | 4.0" | 15.5" |
