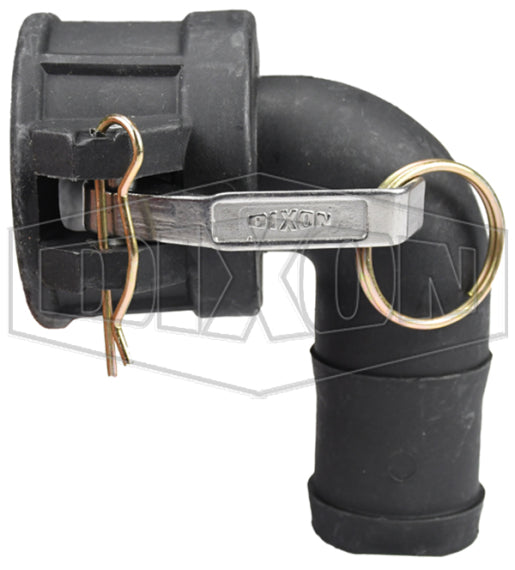

90PPC150 by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type C | 1-1/2" Coupler x 1-1/2" Hose Shank | Polypropylene

90PPC150 by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type C | 1-1/2" Coupler x 1-1/2" Hose Shank | Polypropylene

Sale price$24.74

Dixon Valve
Cam & Groove | Type C | 90° Elbow | Coupler x Hose Shank

Designed for use with liquids.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $23.26
40–79 $21.03
80+ $19.79
Discounts applied in cart/checkout.
Construction:
  • Manufactured from glass-filled polypropylene.
  • EPDM gaskets.
  • 304 stainless steel handles and pins.
Specifications:
  • Maximum operating pressure: 100 PSI (1-1/2" - 2"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
Glass-Filled PolypropylenePart Number Size Max. Operating Pressure
90PPC150 1-1/2" 100 PSI
90PPC200 2" 100 PSI

Product Data:

MAWP:

100

Shape:

90 Degree

Cam & Groove Type:

Type C

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
